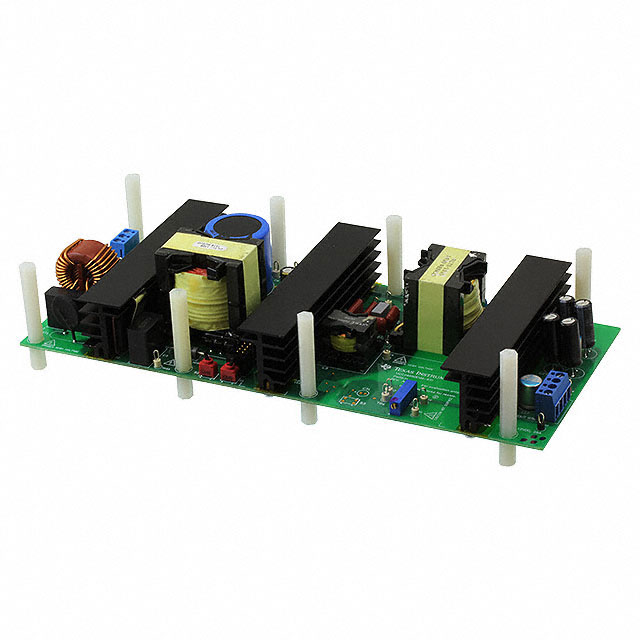

UCC29950EVM-631

Obsolete

Texas Instruments

EVALUATION MODULE UCC29950

Search across all available documentation for this part.

Obsolete

Texas Instruments

EVALUATION MODULE UCC29950

Technical Specifications

Parameters and characteristics for this part

Part	Contents	Embedded	Function	Type	Utilized IC / Part	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Board Type	Regulator Topology	Current - Output	Main Purpose
Texas Instruments UCC29910AEVM-730	Board(s)		Power Factor Correction	Power Management	UCC29910A	Board(s)
Texas Instruments UCC29950EVM-631					UCC29950	Board(s)	Isolated	1	90 VAC	265 VAC	12 V	Fully Populated	Flyback	25 A	AC/DC PFC Primary Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

UCC29950 - AC/DC, Primary Side and PFC 1, Isolated Outputs Evaluation Board
