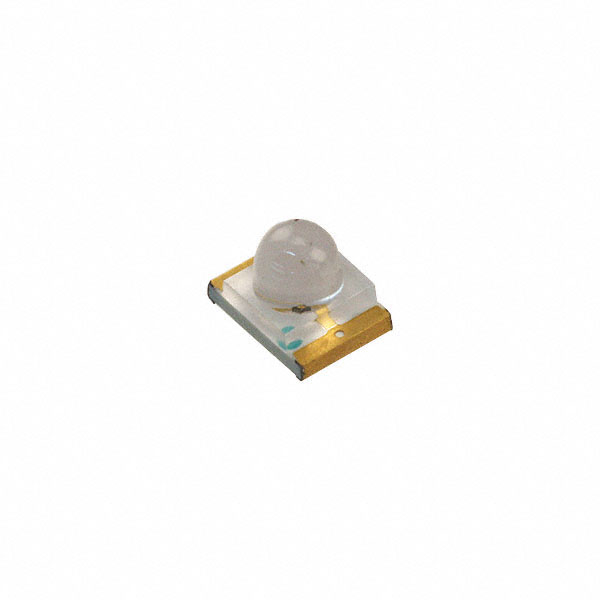

SML-LXL1209SYC-TR
ActiveLumex Opto/Components Inc.
LED YELLOW CLEAR 1209 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-LXL1209SYC-TR
ActiveLumex Opto/Components Inc.
LED YELLOW CLEAR 1209 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-LXL1209SYC-TR |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 2.7 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 400 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1209, 3224 Metric |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.4 mm |
| Supplier Device Package | 1209 |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.36 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.18 | |||
| Tape & Reel (TR) | 1000 | $ 0.17 | ||
| 2000 | $ 0.16 | |||
| 3000 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| 7000 | $ 0.14 | |||
| 10000 | $ 0.14 | |||
| 25000 | $ 0.13 | |||
| 50000 | $ 0.12 | |||
Description
General part information
SML-LXL1209 Series
Yellow LED Indication - Discrete 2V 1209 (3224 Metric)
