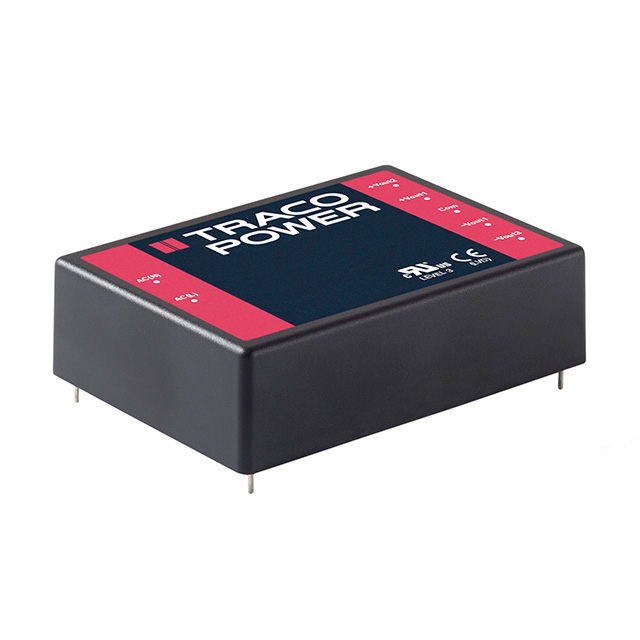

TML 40112
ActiveTraco Power
AC/DC CONVERTER 12V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TML 40112
ActiveTraco Power
AC/DC CONVERTER 12V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TML 40112 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output (Max) [Max] | 3.333 A |
| Efficiency | 84 % |
| Features | Universal Input |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5 Leads, 8-DIP Module |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 3.52 " |
| Size / Dimension [x] | 89.5 mm |
| Size / Dimension [y] | 2.52 " |
| Size / Dimension [y] | 64.1 mm |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 25 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 375 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 100 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 84.84 | |
| 10 | $ 77.90 | |||
| 25 | $ 75.30 | |||
| 50 | $ 73.39 | |||
| 100 | $ 71.52 | |||
| 250 | $ 62.77 | |||
Description
General part information
TML 40 Series
Enclosed AC DC Converters 1 Output 12V 3.333A 90 ~ 264 VAC, 100 ~ 375 VDC Input
