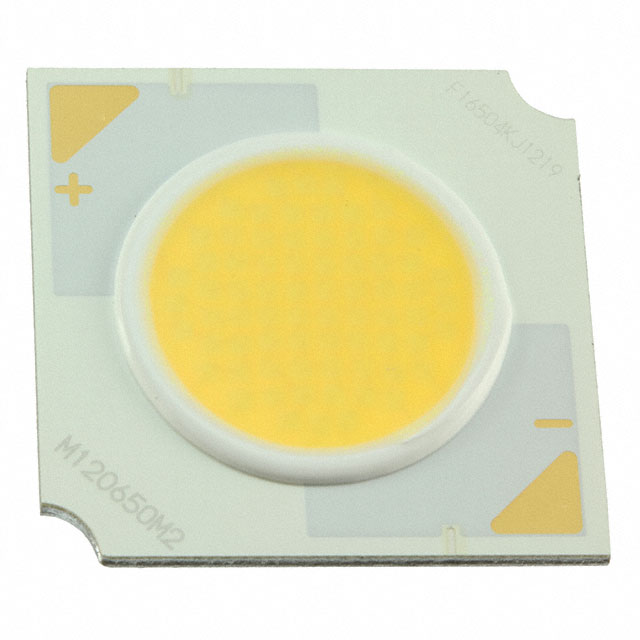

CLU721-1206C4-273H5K2

Active

Citizen Finedevice Co Ltd

LED COB CLU721 WM WHT SQ 2700K

Search across all available documentation for this part.

Active

Citizen Finedevice Co Ltd

LED COB CLU721 WM WHT SQ 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	CLU721-1206C4-273H5K2

CCT (K)	2700 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.38 A
Current - Test	1.05 A
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	11 mm
Lumens/Watt @ Current - Test	90 lm/W
Luminous Flux @ Current/Temperature	3560 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	37.6 V

Part	Light Emitting Surface (LES) [diameter]	Configuration	Type	Luminous Flux @ Current/Temperature	Temperature - Test	Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Lens Type	Lumens/Watt @ Current - Test	Color	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]
Citizen Finedevice Co Ltd CLU721-1206C4-353H5K2	11 mm	Square	Chip On Board (COB)	3845 lm	85 °C	1.05 A	3500 K	37.6 V	1.38 A	Flat	97 lm/W	Warm White	90	19 mm	19 mm
Citizen Finedevice Co Ltd CLU721-1206C4-273H5K2	11 mm	Square	Chip On Board (COB)	3560 lm	85 °C	1.05 A	2700 K	37.6 V	1.38 A	Flat	90 lm/W	Warm White	90	19 mm	19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	48	$ 9.36

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU721 White, Warm Square
