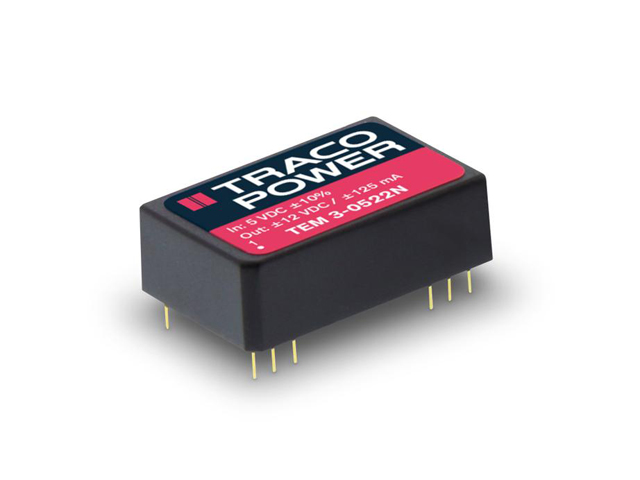

TEM 3-0523N

Active

Traco Power

DC DC CONVERTER +/-15V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEM 3-0523N

Active

Traco Power

DC DC CONVERTER +/-15V 3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEM 3-0523N

Applications	ITE (Commercial)
Current - Output (Max)	100 mA
Current - Output (Max)	100 mA
Efficiency	78 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module
Package / Case	12 Leads
Power (Watts)	3 W
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.79 "
Size / Dimension [z]	10 mm
Size / Dimension [z]	0.39 in
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

TEM 3 Series

Part	Features	Applications	Voltage - Input (Max) [Max]	Voltage - Output 2	Package / Case	Package / Case	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Power (Watts)	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power TEM 3-2422N	SCP	ITE (Commercial)	26.4 V	-12 V	24-DIP Module	12 Leads	81 %	2	21.6 V	Through Hole	85 °C	-40 °C	12 V	3 W	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	1.5 kV	125 mA	125 mA
Traco Power TEM 3-2413N	SCP	ITE (Commercial)	26.4 V		24-DIP Module	12 Leads	80 %	1	21.6 V	Through Hole	85 °C	-40 °C	15 V	3 W	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	1.5 kV			200 mA
Traco Power TEM 3-1212N	SCP	ITE (Commercial)	13.2 V		24-DIP Module	12 Leads	80 %	1	10.8 V	Through Hole	85 °C	-40 °C	12 V	3 W	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	1.5 kV			250 mA
Traco Power TEM 3-1213N	SCP	ITE (Commercial)	13.2 V		24-DIP Module	12 Leads	80 %	1	10.8 V	Through Hole	85 °C	-40 °C	15 V	3 W	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	1.5 kV			200 mA
Traco Power TEM 3-1222N	SCP	ITE (Commercial)	13.2 V	-12 V	24-DIP Module	12 Leads	81 %	2	10.8 V	Through Hole	85 °C	-40 °C	12 V	3 W	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	1.5 kV	125 mA	125 mA
Traco Power TEM 3-0523N	SCP	ITE (Commercial)	5.5 V	-15 V	24-DIP Module	12 Leads	78 %	2	4.5 V	Through Hole	85 °C	-40 °C	15 V	3 W	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	1.5 kV	100 mA			100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.90
		10	$ 13.46
		25	$ 13.18
		50	$ 12.96
		100	$ 12.75
		250	$ 12.48
		500	$ 12.27

Description

General part information

TEM 3 Series

Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 5.5V Input
