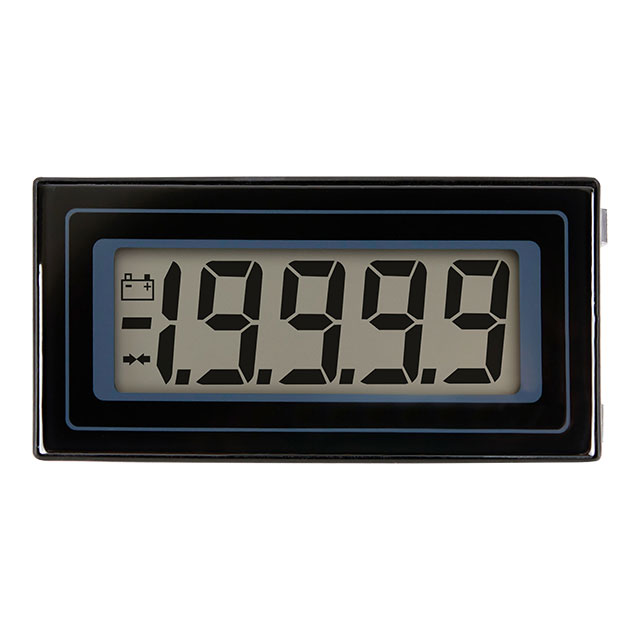

DPM 160S
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DPM 160S
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DPM 160S |
|---|---|
| Display Characters - Height [z] | 0.5 in |
| Display Characters - Height [z] | 12.7 mm |
| Display Type | LCD - Black Characters |
| Measuring Range [Max] | 0.2 VDC |
| Measuring Range [Min] | -200 mV |
| Measuring Type | Voltage |
| Number of Characters Per Row | 4.5 |
| Output Type | Reference |
| Panel Cutout Dimensions [x] | 57 mm |
| Panel Cutout Dimensions [y] | 27 mm |
| Termination Style | PC Pin |
| Type | Voltmeter |
| Voltage - Supply [Max] | 14 V |
| Voltage - Supply [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 157.49 | |
Description
General part information
DPM 160 Series
Voltmeter LCD - Black Characters Display Panel Mount
