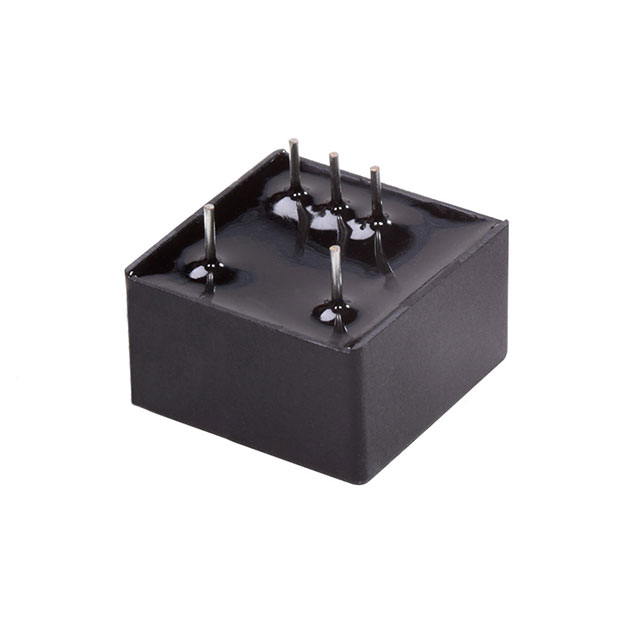

AYA01B12-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 12V 3W
Deep-Dive with AI
Search across all available documentation for this part.
AYA01B12-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 12V 3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AYA01B12-L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 250 mA |
| Efficiency | 87 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module |
| Package / Case | 4 Lead |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 0.55 in |
| Size / Dimension [x] | 14 mm |
| Size / Dimension [y] | 0.55 in |
| Size / Dimension [y] | 14 mm |
| Size / Dimension [z] | 0.31 in |
| Size / Dimension [z] | 8 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 23.77 | |
Description
General part information
AYA01B Series
Isolated Module DC DC Converter 1 Output 12V 250mA 9V - 18V Input
