F3480T016

Active

Curtis Industries

LINE FILTER 480VAC 16A CHASSIS

Search across all available documentation for this part.

Active

Curtis Industries

LINE FILTER 480VAC 16A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Part	Current	Applications	Voltage - Rated AC	Filter Type	Termination Style	Mounting Type	Approval Agency	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]
Curtis Industries F3480T009	9 A	General Purpose	480 V	Three Phase (Delta)	Terminal Block	Chassis Mount	CE UR	Two Stage	60 Hz	50 Hz
Curtis Industries F3480T080	80 A	General Purpose	480 V	Three Phase (Delta)	Terminal Block	Chassis Mount	CE UR	Two Stage	60 Hz	50 Hz
Curtis Industries F3480T016	16 A	General Purpose	480 V	Three Phase (Delta)	Terminal Block	Chassis Mount	CE UR	Two Stage	60 Hz	50 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 226.13

General part information

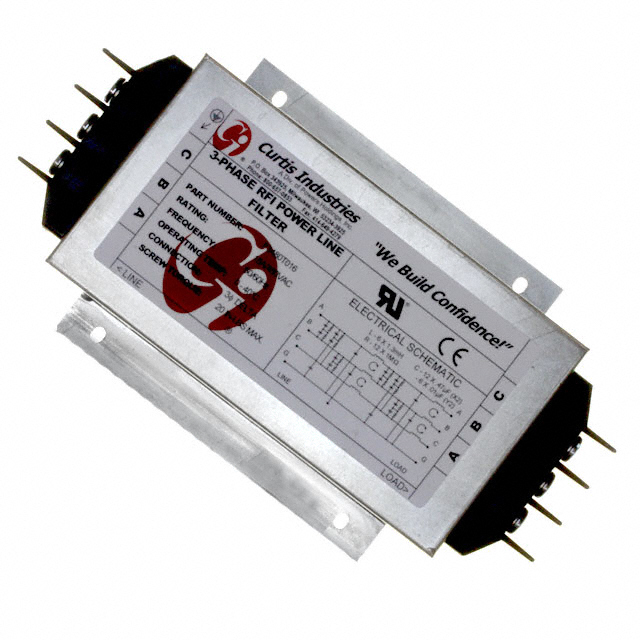

Three Phase (Delta) EMC/EMI Line Filter 16 A 480V 50/60Hz Two Stage Terminal Block

Technical documentation and resources
