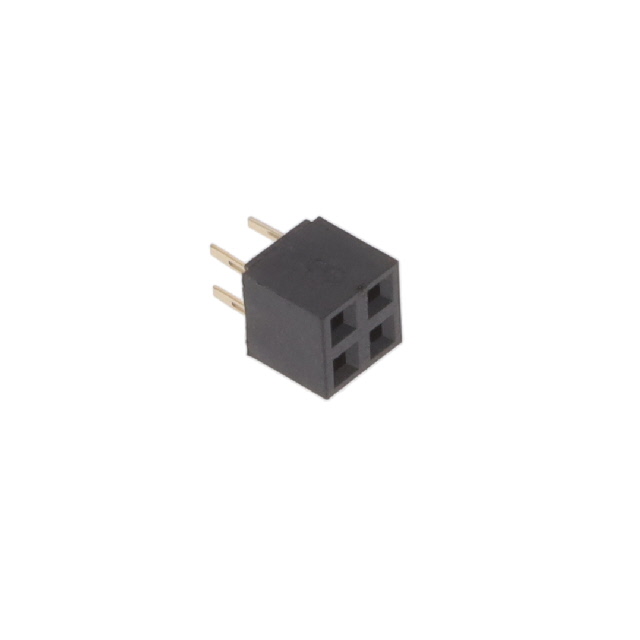

2RS2-04-G

Active

Adam Tech

RECEPTACLE STRIP 4P 2.0MM PITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

2RS2-04-G

Active

Adam Tech

RECEPTACLE STRIP 4P 2.0MM PITCH

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2RS2-04-G

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder
Voltage Rating	250 VAC

2RS2 Series

Part	Fastening Type	Contact Finish Thickness - Mating	Material Flammability Rating	Connector Type	Contact Finish - Mating	Number of Rows	Contact Shape	Voltage Rating	Contact Finish Thickness - Post	Number of Positions Loaded	Mounting Type	Insulation Material	Applications	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Insulation Height	Insulation Height	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Type	Number of Positions
Adam Tech 2RS2-10-G	Push-Pull	Flash	UL94 V-0	Receptacle	Gold	2	Square	250 VAC	Flash	All	Through Hole	Nylon Polyamide (PA)	General Purpose	0.079 in	2 mm	0.091 in	2.3 mm	-40 °C	105 ░C	Solder	Phosphor Bronze	4.3 mm	0.169 "	Gold	0.079 in	2 mm	Black	Female Socket	10
Adam Tech 2RS2-08-G	Push-Pull	Flash	UL94 V-0	Receptacle	Gold	2	Square	250 VAC	Flash	All	Through Hole	Nylon Polyamide (PA)	General Purpose	0.079 in	2 mm	0.091 in	2.3 mm	-40 °C	105 ░C	Solder	Phosphor Bronze	4.3 mm	0.169 "	Gold	0.079 in	2 mm	Black	Female Socket	8
Adam Tech 2RS2-20-G	Push-Pull	Flash	UL94 V-0	Receptacle	Gold	2	Square	250 VAC	Flash	All	Through Hole	Nylon Polyamide (PA)	General Purpose	0.079 in	2 mm	0.091 in	2.3 mm	-40 °C	105 ░C	Solder	Phosphor Bronze	4.3 mm	0.169 "	Gold	0.079 in	2 mm	Black	Female Socket	20
Adam Tech 2RS2-12-G	Push-Pull	Flash	UL94 V-0	Receptacle	Gold	2	Square	250 VAC	Flash	All	Through Hole	Nylon Polyamide (PA)	General Purpose	0.079 in	2 mm	0.091 in	2.3 mm	-40 °C	105 ░C	Solder	Phosphor Bronze	4.3 mm	0.169 "	Gold	0.079 in	2 mm	Black	Female Socket	12
Adam Tech 2RS2-04-G	Push-Pull	Flash	UL94 V-0	Receptacle	Gold	2	Square	250 VAC	Flash	All	Through Hole	Nylon Polyamide (PA)	General Purpose	0.079 in	2 mm	0.091 in	2.3 mm	-40 °C	105 ░C	Solder	Phosphor Bronze	4.3 mm	0.169 "	Gold	0.079 in	2 mm	Black	Female Socket	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.09
		10	$ 0.83
		100	$ 0.64
