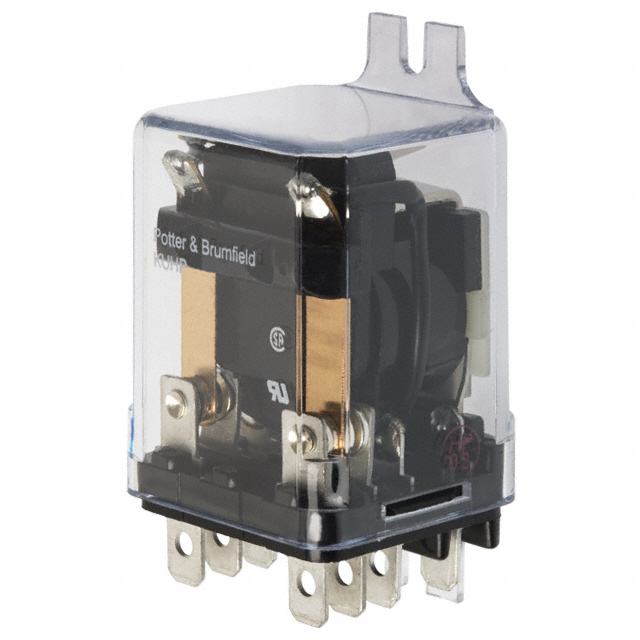

KUHP-11DT1-12

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 20A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KUHP-11DT1-12

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 20A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KUHP-11DT1-12

Approval Agency	CSA, UR
Coil Current	100 mA
Coil Insulation	Class B
Coil Resistance	120 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	20 A
Load - Max Switching	4800 VA
Mounting Type	Chassis Mount
Must Operate Voltage	9 VDC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	240 VAC
Termination Style	Quick Connect - 0.250" (6.3mm)

KUHP-11 Series

Part	Coil Voltage	Contact Material	Coil Insulation	Coil Resistance	Termination Style	Relay Type	Contact Rating (Current)	Load - Max Switching	Operate Time	Switching Voltage	Coil Type	Release Time	Contact Form	Approval Agency	Coil Current	Must Operate Voltage	Mounting Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Potter & Brumfield Relays KUHP-11A51-240	240 VAC	Silver Cadmium Oxide (AgCdO)	Class B	7.2 kOhms	Quick Connect - 0.250" (6.3mm)	General Purpose	20 A	4800 VA	20 ms	240 VAC	Non Latching	20 ms	DPDT (2 Form C)	CSA UR	12 mA	204 VAC	Chassis Mount	45 °C	-45 °C
TE Connectivity Potter & Brumfield Relays KUHP-11AT1-240	240 VAC	Silver Cadmium Oxide (AgCdO)	Class B	7.2 kOhms	Quick Connect - 0.250" (6.3mm)	General Purpose	20 A	4800 VA	20 ms	240 VAC	Non Latching	20 ms	DPDT (2 Form C)	CSA UR	33.3 mA	204 VAC	Chassis Mount	45 °C	-45 °C
TE Connectivity Potter & Brumfield Relays KUHP-11D51-48	48 VDC	Silver Cadmium Oxide (AgCdO)	Class B		Quick Connect - 0.250" (6.3mm)	General Purpose	20 A	4800 VA	20 ms	240 VAC	Non Latching	20 ms	DPDT (2 Form C)	CSA UR	26.7 mA	36 VDC	Chassis Mount			-45 °C	70 °C
TE Connectivity Potter & Brumfield Relays KUHP-11D17-48	48 VDC	Silver Cadmium Oxide (AgCdO)	Class B		PC Pin	General Purpose	20 A	4800 VA	20 ms	240 VAC	Non Latching	20 ms	DPDT (2 Form C)	CSA UR	26.7 mA	36 VDC	Through Hole			-45 °C	70 °C
TE Connectivity Potter & Brumfield Relays KUHP-11D17-12	12 VDC	Silver Cadmium Oxide (AgCdO)	Class B	120 Ohms	PC Pin	General Purpose	20 A	4800 VA	20 ms	240 VAC	Non Latching	20 ms	DPDT (2 Form C)	CSA UR	100 mA	9 VDC	Through Hole			-45 °C	70 °C
TE Connectivity Potter & Brumfield Relays KUHP-11A11-120	120 VAC	Silver Cadmium Oxide (AgCdO)	Class B	1.7 kOhms	Quick Connect - 0.250" (6.3mm)	General Purpose	20 A	4800 VA	20 ms	240 VAC	Non Latching	20 ms	DPDT (2 Form C)	CSA UR	24 mA	102 VAC	Chassis Mount	45 °C	-45 °C
TE Connectivity Potter & Brumfield Relays KUHP-11DT1-12	12 VDC	Silver Cadmium Oxide (AgCdO)	Class B	120 Ohms	Quick Connect - 0.250" (6.3mm)	General Purpose	20 A	4800 VA	20 ms	240 VAC	Non Latching	20 ms	DPDT (2 Form C)	CSA UR	100 mA	9 VDC	Chassis Mount			-45 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.09
		10	$ 27.15
		25	$ 25.73
		50	$ 24.70
		100	$ 23.72
		250	$ 22.48

Description

General part information

KUHP-11 Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Chassis Mount
