SM1211E915TOPIC

Active

Semtech Corporation

KIT PICTAIL EXT FOR SX1211

Search across all available documentation for this part.

Active

Semtech Corporation

KIT PICTAIL EXT FOR SX1211

Technical Specifications

Parameters and characteristics for this part

Specification	SM1211E915TOPIC

For Use With/Related Products	SX1211
Frequency	915 MHz
Supplied Contents	Board(s)
Type	Transceiver

Part	Antenna Type	Modulation	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Family/Standard	Frequency	Data Rate	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power - Output	Utilized IC / Part	Protocol	Serial Interfaces	Current - Receiving	Current - Transmitting [Max]	Current - Transmitting [Min]	For Use With/Related Products	Type	Supplied Contents
Semtech Corporation SM1211E868	Antenna Not Included U.FL	FSK OOK	2.1 V	3.6 V	802.15.4	868 MHz	25 kbps	-113 dBm	85 °C	-40 °C	Surface Mount	12.5 dBm	SX1211	Zigbee®	SPI	3 mA	25 mA	16 mA
Semtech Corporation SM1212E433						433 MHz													SX1212E	Transceiver	Board(s)
Semtech Corporation SM1211E915	Antenna Not Included U.FL	FSK OOK	2.1 V	3.6 V	802.15.4	960 MHz	25 kbps	-113 dBm	85 °C	-40 °C	Surface Mount	12.5 dBm	SX1211	Zigbee®	SPI	3 mA	25 mA	16 mA
Semtech Corporation SM1211E915TOPIC						915 MHz													SX1211	Transceiver	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

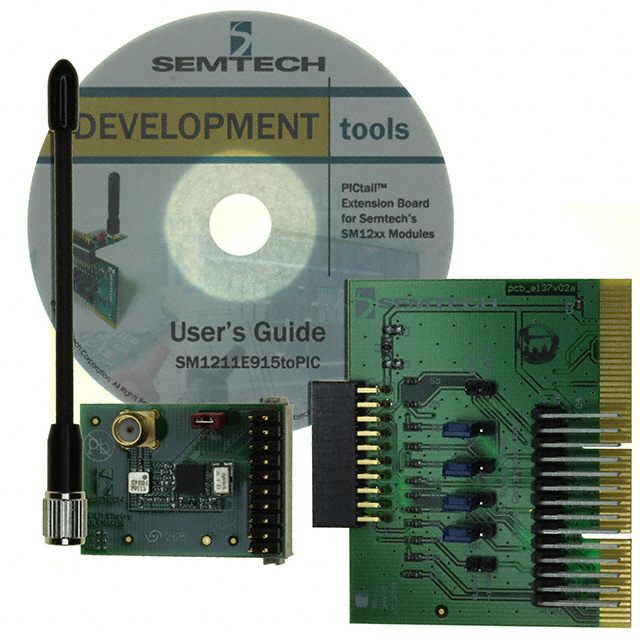

- SX1211 Transceiver 915MHz Evaluation Board

Technical documentation and resources

No documents available
