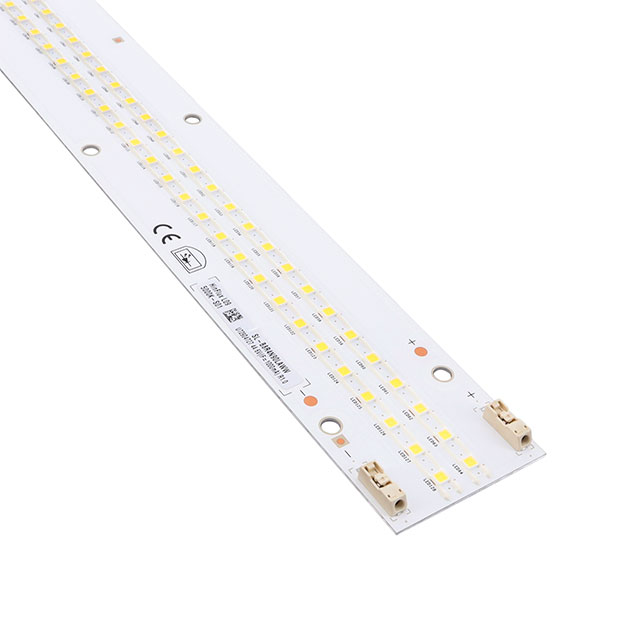

SL-B8R4N90LAWW
ActiveSamsung Semiconductor, Inc.
LED MOD H INFLUX LNR STRP 5000K
Deep-Dive with AI
Search across all available documentation for this part.
SL-B8R4N90LAWW
ActiveSamsung Semiconductor, Inc.
LED MOD H INFLUX LNR STRP 5000K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SL-B8R4N90LAWW |
|---|---|
| CCT (K) | 5000 K |
| Color | Cool, White |
| Configuration | Linear Light Strip |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 1.6 A |
| Current - Test | 1 A |
| Height [z] | 5.2 mm |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test | 192 lm/W |
| Size / Dimension [x] | 560 mm |
| Size / Dimension [y] | 41 mm |
| Temperature - Test | 55 °C |
| Type | LED Module |
| Viewing Angle | 118 ° |
| Voltage - Forward (Vf) (Typ) | 44.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 31.84 | |
| 10 | $ 24.93 | |||
| 120 | $ 21.78 | |||
| 480 | $ 19.97 | |||
Description
General part information
SL-B8R4 Series
LED Lighting COBs Engines Modules LED Module H inFlux White, Cool Linear Light Strip
Documents
Technical documentation and resources
No documents available
