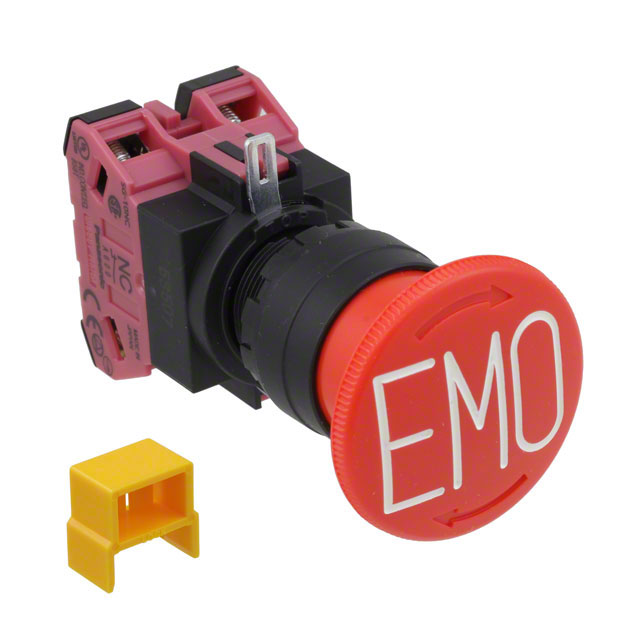

SG-E1-02-E

Obsolete

Panasonic Industrial Automation Sales

SW E-STOP TWIST RESET 10A 110V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SW E-STOP TWIST RESET 10A 110V

Technical Specifications

Parameters and characteristics for this part

Specification	SG-E1-02-E

Circuit	DPST-NC
Current Rating (Amps)	8 A, 10 A
Features	EMO Marking
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Reset Operation	Twist
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Termination Style	Panel Cutout Dimensions [diameter]	Ingress Protection	Switch Function	Current Rating (Amps)	Features	Voltage Rating - DC	Reset Operation	Voltage Rating - AC
Panasonic Industrial Automation Sales SG-E1-02-E	Panel Mount Front	-25 °C	60 °C	DPST-NC	Screw Terminal	22.3 mm	IP65 - Dust Tight Water Resistant	On-Off	8 A 10 A	EMO Marking	24 V	Twist	110 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SW E-STOP TWIST RESET 10A 110V

Technical documentation and resources

No documents available
