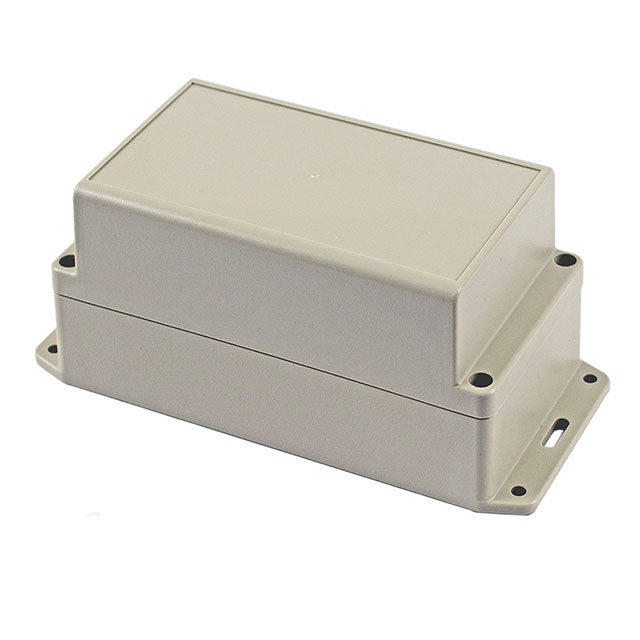

RP1185BF

Active

Hammond Manufacturing

BOX ABS GRAY 7.68"L X 3.47"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ABS GRAY 7.68"L X 3.47"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1185BF

Area (L x W)	26.7 in˛
Area (L x W)	172 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Height [z]	3.35 in
Height [z]	85.09 mm
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	195.07 mm
Size / Dimension [x]	7.68 "
Size / Dimension [y]	88.14 mm
Size / Dimension [y]	3.47 in
Thickness	2.03 mm
Thickness	0.08 "

Part	Material	Thickness	Thickness	Container Type	Area (L x W)	Area (L x W)	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]	Design	Color
Hammond Manufacturing RP1185BFC	ABS	2.03 mm	0.08 "	Box	26.7 in˛	172 cm²	UL94 HB	88.14 mm	3.47 in	195.07 mm	7.68 "	3.35 in	85.09 mm	Cover Included	Clear Cover/Door Gray
Hammond Manufacturing RP1185BF	ABS	2.03 mm	0.08 "	Box	26.7 in˛	172 cm²	UL94 HB	88.14 mm	3.47 in	195.07 mm	7.68 "	3.35 in	85.09 mm	Cover Included	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box ABS Gray Cover Included 7.680" L x 3.470" W (195.07mm x 88.14mm) X 3.350" (85.09mm)

Technical documentation and resources

No documents available
