SA636BS,115

Obsolete

Freescale Semiconductor - NXP

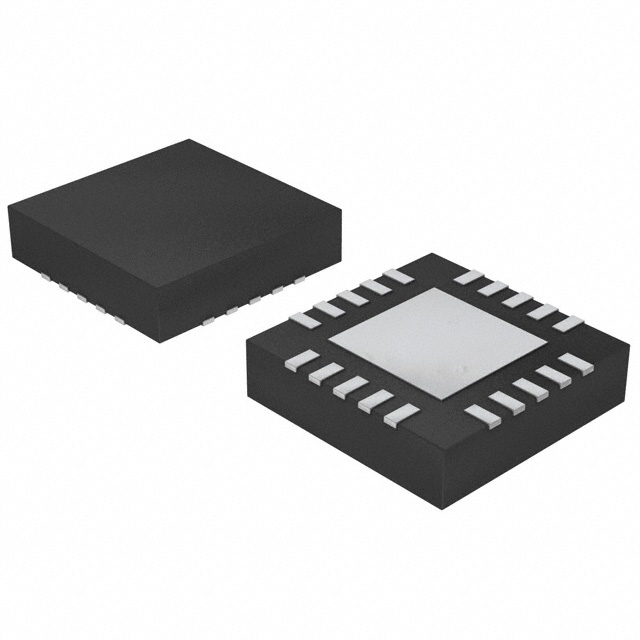

IC MIXER 500MHZ UP CONV 20HVQFN

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC MIXER 500MHZ UP CONV 20HVQFN

Technical Specifications

Parameters and characteristics for this part

Part	Current - Supply	Package / Case	Package / Case [x]	Gain	Noise Figure	Supplier Device Package	Frequency	Mounting Type	RF Type	Number of Mixers	Voltage - Supply [Min]	Voltage - Supply [Max]	Secondary Attributes
Freescale Semiconductor - NXP SA636DK/01,112	6.5 mA	20-LSSOP	0.173 in 4.4 mm	11 dB	12 dB	20-SSOP	500 MHz	Surface Mount	ASK Cellular DECT FSK UHF VHF	1	2.7 V	5.5 V	Up Converter
Freescale Semiconductor - NXP SA636DK/01,118	6.5 mA	20-LSSOP	0.173 in 4.4 mm	11 dB	12 dB	20-SSOP	500 MHz	Surface Mount	ASK Cellular DECT FSK UHF VHF	1	2.7 V	5.5 V
Freescale Semiconductor - NXP SA636BS,115	6.5 mA	20-VFQFN Exposed Pad		11 dB	12 dB	20-HVQFN (4x4)	500 MHz	Surface Mount	ASK Cellular DECT FSK UHF VHF	1	2.7 V	5.5 V	Up Converter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mixer IC Cellular, ASK, DECT, FSK, UHF, VHF Up Converter 500MHz 20-HVQFN (4x4)

Technical documentation and resources
