LIN-11HAW1
ActiveZF Electronics

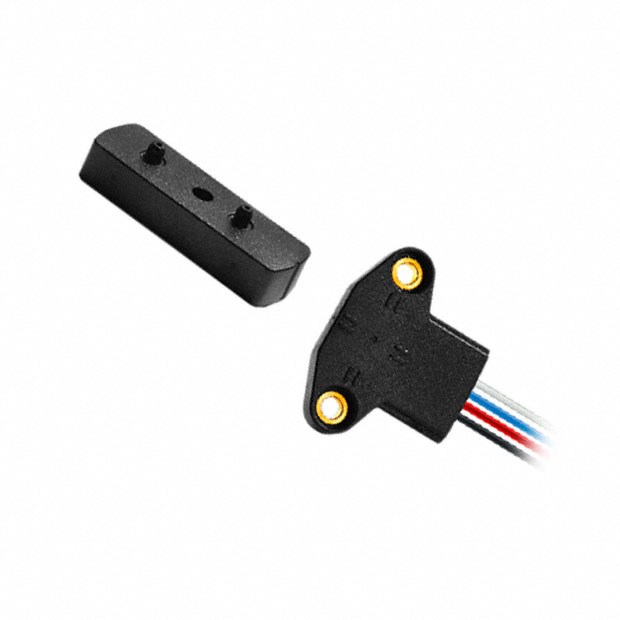

SENSOR LINEAR 45MM WIRE LEADS
Deep-Dive with AI
Search across all available documentation for this part.
LIN-11HAW1
ActiveZF Electronics
SENSOR LINEAR 45MM WIRE LEADS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LIN-11HAW1 |
|---|---|
| Actuator Type | External Magnet, Included |
| For Measuring | Linear Position |
| Linear Range [Max] | 45 mm |
| Linear Range [Max] | 1.77 in |
| Linear Range [Min] | 0 in |
| Linear Range [Min] | 0 mm |
| Linearity | 1 % |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 140 °C |
| Operating Temperature [Min] | -40 °C |
| Output | PWM, Analog Voltage |
| Package / Case | Box with Wire Leads |
| Technology | Hall Effect |
| Termination Style | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.99 | |
| 5 | $ 30.35 | |||
| 10 | $ 28.21 | |||
| 25 | $ 25.60 | |||
| 50 | $ 23.80 | |||
| 100 | $ 23.20 | |||
Description
General part information
LIN-11 Series
Hall Effect Sensor Linear Position External Magnet, Included Wire Leads
Documents
Technical documentation and resources
No documents available
