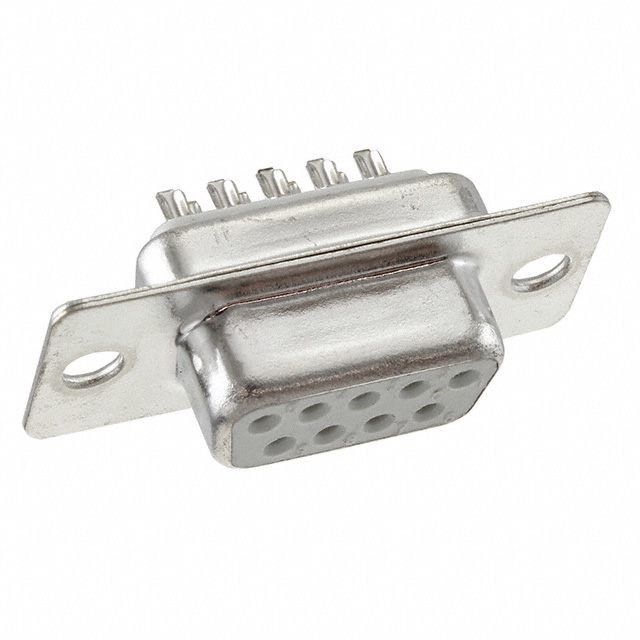

A-DF 09 LL/Z

Active

Assmann WSW Components

CONN D-SUB RCPT 9POS SLDR CUP

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB RCPT 9POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A-DF 09 LL/Z

Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	250 VDC

Part	Contact Type	Number of Positions	Termination	Dielectric Material	Backset Spacing	Backset Spacing	Color	Connector Style	Number of Rows	Mounting Type	Contact Material	Flange Feature	Ingress Protection	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Connector Type	Shell Material, Finish	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish Thickness	Current Rating (Amps)	Material Flammability Rating
Assmann WSW Components A-DF 09 AA-WP	Signal	9	Solder	Glass Filled Nylon Polyamide (PA)	0.244 "	6.2 mm	Black	D-Sub	2	Panel Mount Right Angle Through Hole	Copper Alloy	Female Screwlock Mating Side	IP67 - Dust Tight Waterproof	DE E	1	Gold	Receptacle Female Sockets
Assmann WSW Components A-DF 09 PP-F	Signal	9	Solder	Polybutylene Terephthalate (PBT) Glass Filled			Black	D-Sub	2	Through Hole	Copper Alloy	Housing/Shell (Unthreaded)		DE E	1	Gold	Receptacle Female Sockets	Steel	250 VDC	85 °C	-20 C	Filter	Flash	3 A	UL94 V-0
Assmann WSW Components A-DF 09 A/KG-F	Signal	9	Solder	Polybutylene Terephthalate (PBT) Glass Filled	0.319 in	8.1 mm	Black	D-Sub	2	Through Hole Right Angle	Copper Alloy	Housing/Shell (4-40)		DE E	1	Gold	Receptacle Female Sockets		250 VDC	85 °C	-20 C	Board Lock Filter	Flash	3 A	UL94 V-0
Assmann WSW Components A-DF 09 LL/Z	Signal	9		Polybutylene Terephthalate (PBT) Glass Filled			White	D-Sub	2	Free Hanging (In-Line)	Brass	Housing/Shell (Unthreaded)		DE E	1	Gold	Receptacle Female Sockets	Steel	250 VDC	105 ░C	-55 °C		Flash	3 A	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources
