L6R24-240

Active

Tri-Mag, LLC

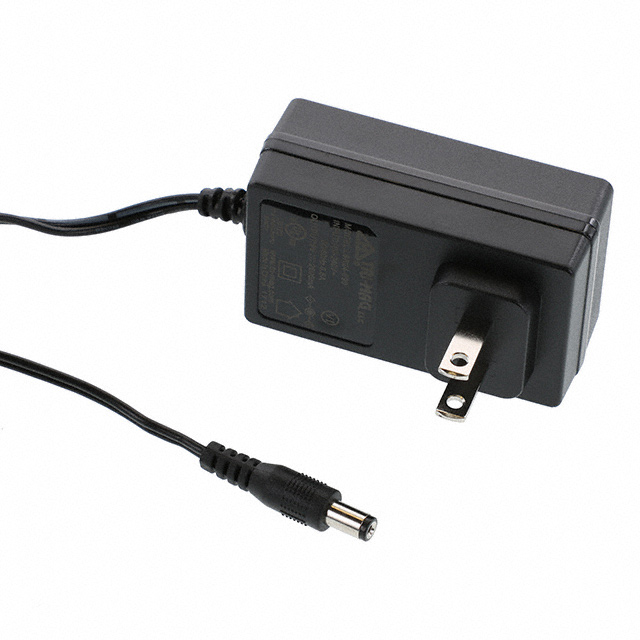

AC/DC WALL MOUNT ADAPTER 24V 24W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R24-240

Active

Tri-Mag, LLC

AC/DC WALL MOUNT ADAPTER 24V 24W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L6R24-240

Applications	ITE (Commercial)
Approval Agency	cUL, FCC, UL
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	24 W
Region Utilized	North America
Size / Dimension [x]	71.1 mm
Size / Dimension [x]	2.8 in
Size / Dimension [y]	1.7 "
Size / Dimension [y]	43.2 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

L6R24 Series

Part	Standard Number	Power (Watts)	Applications	Input Type	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Input Connector	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	No Load Power Consumption	Efficiency	Current - Output (Max) [Max]	Polarization	Output Connector [diameter]	Output Connector [x]	Output Connector	Approval Agency	Cord Length	Cord Length	Operating Temperature [Max]	Form
Tri-Mag, LLC L6R24D-240-C8	62368-1	24 W	ITE (Commercial)	Cord	International	90 VAC	264 VAC	24 V	IEC 320-C8	0.309 lb	140 g	91.9 mm	1.79 "	45.4 mm	1.08 "	27.5 mm	3.62 in	100 mW	Level VI	1 A	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	cUL FCC UL	1.5 m	59 in	40 °C	Desktop (Class II)
Tri-Mag, LLC L6R24D-360-C8	62368-1	25 W	ITE (Commercial)	Cord	International	90 VAC	264 VAC	36 V	IEC 320-C8	0.309 lb	140 g	91.9 mm	1.79 "	45.4 mm	1.08 "	27.5 mm	3.62 in	100 mW	Level VI	700 mA	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	cUL FCC UL	1.5 m	59 in	40 °C	Desktop (Class II)
Tri-Mag, LLC L6R24D-300-C8	62368-1	24 W	ITE (Commercial)	Cord	International	90 VAC	264 VAC	30 VDC	IEC 320-C8	0.309 lb	140 g	91.9 mm	1.79 "	45.4 mm	1.08 "	27.5 mm	3.62 in	100 mW	Level VI	800 mA	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	cUL FCC UL	1.5 m	59 in	40 °C	Desktop (Class II)
Tri-Mag, LLC L6R24D-180-C8	62368-1	23 W	ITE (Commercial)	Cord	International	90 VAC	264 VAC	18 V	IEC 320-C8	0.309 lb	140 g	91.9 mm	1.79 "	45.4 mm	1.08 "	27.5 mm	3.62 in	100 mW	Level VI	1.3 A	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	cUL FCC UL	1.5 m	59 in	40 °C	Desktop (Class II)
Tri-Mag, LLC L6R24-240	62368-1	24 W	ITE (Commercial)	Fixed Blade	North America	90 VAC	264 VAC	24 V	NEMA 1-15P			71.1 mm	1.7 "	43.2 mm	1.3 "	33 mm	2.8 in	100 mW	Level VI	1 A	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	cUL FCC UL	1.5 m	59 in	40 °C	Wall Mount (Class II)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.39
		5	$ 10.11
		10	$ 9.55
		25	$ 8.98
		50	$ 8.42
		100	$ 7.86
		300	$ 7.58
		500	$ 7.47

Description

General part information

L6R24 Series

24V 24 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
