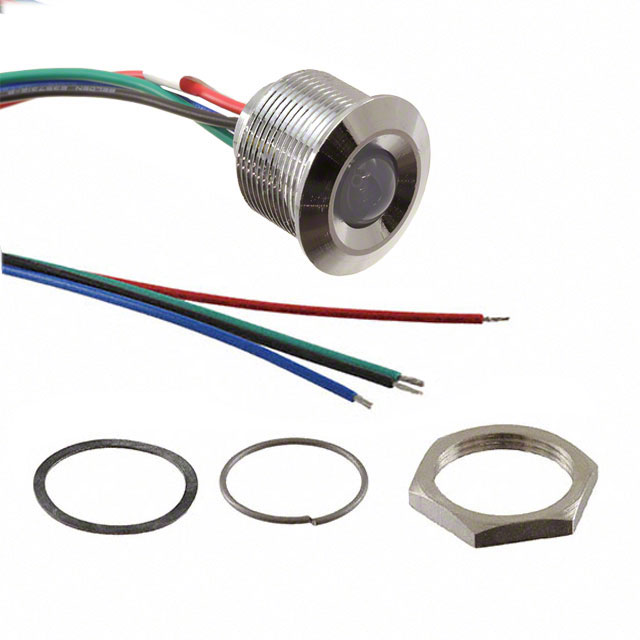

Q19P5CZZRGB12ECA
ActiveAPEM
PROMCHRMBEZ RGB 12VDC IP67
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q19P5CZZRGB12ECA |
|---|---|
| Current [custom] | 20 mA |
| Current [custom] | 20 mA |
| Current [custom] | 20 mA |
| Ingress Protection | IP67 |
| Lamp Color | Blue, Red, Green |
| Lens Color | Clear |
| Lens Size [diameter] | 22 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 100 mcd, 220 mcd, 500 mcd |
| Panel Cutout Dimensions | 0.75 in |
| Panel Cutout Dimensions | 19 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.28 | |
| 25 | $ 38.37 | |||
| 100 | $ 35.72 | |||
Description
General part information
Q19P5CZZRGB Series
LED Panel Indicator Red, Green, Blue (RGB) Diffused 100° 12V 20mA Red, 20mA Green, 20mA Blue Wire Leads - 7.87" (200.00mm)
