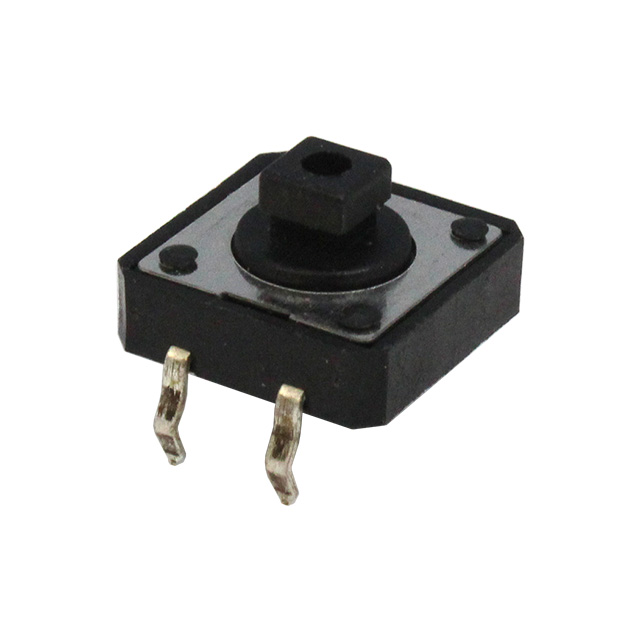

CT1103TF180

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CT1103TF180

Actuator Height off PCB, Vertical [z]	7.3 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	180 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	12 mm
Outline [y]	12 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switch Travel [custom]	Switch Function	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Outline [y]	Outline [x]	Actuator Material	Operating Force	Contact Rating @ Voltage	Illumination	Mounting Type	Circuit
CIT Relay and Switch CT1103TF180	Plunger for Cap	85 °C	-40 °C	PC Pin	0.3 mm	Off-Mom	7.3 mm	Top Actuated	12 mm	12 mm	Nylon 6/6 Polyamide (PA66)	180 gf	0.05 A 50 VDC	Non-Illuminated	Through Hole	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
