100024209

Active

Telegartner Inc

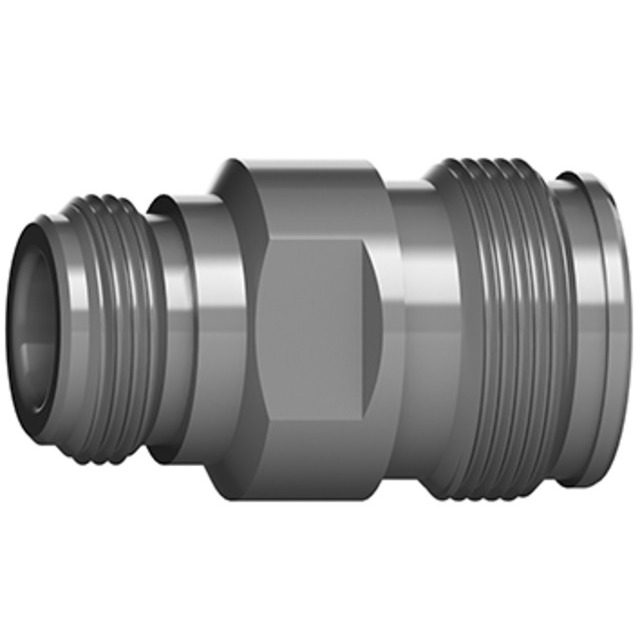

ADAPT STR NF - 4.3-10F

Search across all available documentation for this part.

Active

Telegartner Inc

ADAPT STR NF - 4.3-10F

Technical Specifications

Parameters and characteristics for this part

Specification	100024209

Adapter Series	4.3/10 to N
Adapter Type	Jack to Jack
Center Contact Material	Copper Alloy
Center Contact Plating	Gold, Nickel Phosphorous
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	4.3/10 Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Center Contact Plating	Style	Ingress Protection	Impedance	Frequency - Max [Max]	Adapter Type	Adapter Series	Convert From (Adapter End)	Convert To (Adapter End)	Center Gender	Center Contact Material	Mounting Type	Conversion Type	Dielectric Material
Telegartner Inc 100024209	Gold Nickel Phosphorous	Straight	IP68 - Dust Tight Waterproof	50 Ohms	6000 MHz	Jack to Jack	4.3/10 to N	4.3/10 Jack Female Socket	Female Socket N Jack	Female to Female	Copper Alloy	Free Hanging (In-Line)	Between Series	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.3/10 Jack, Female Socket To N Jack, Female Socket 50 Ohms
