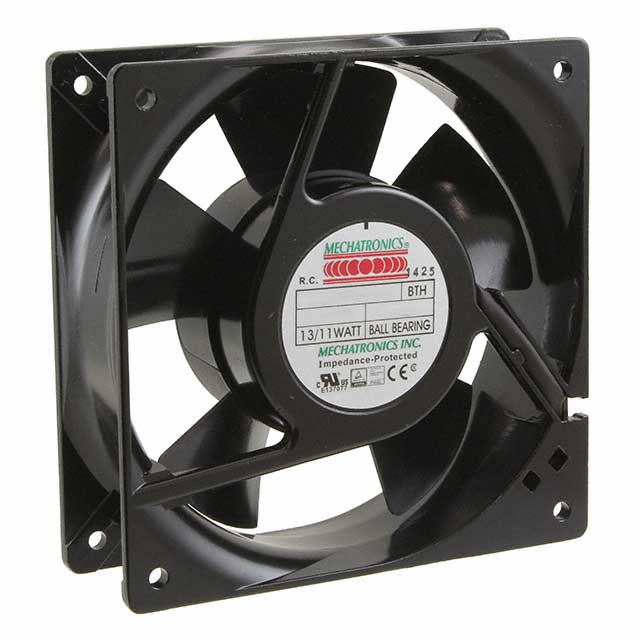

UF12B12-BWHR-CC

Active

Mechatronics Bearing Group

FAN AXIAL 120X38MM 115VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet +1

UF12B12-BWHR-CC

Active

Mechatronics Bearing Group

FAN AXIAL 120X38MM 115VAC WIRE

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF12B12-BWHR-CC

Air Flow	2.1 m³/min
Air Flow	75 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Features	Conformal Coating
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	42 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	11 W
RPM	2900 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	59.8 Pa
Static Pressure	0.24 in H2O
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Weight	0.725 lb
Weight	328.85 g
Width [y]	25 mm

UF12B Series

Part	Voltage - Rated	Lifetime @ Temp.	Power (Watts)	Air Flow	Air Flow	Weight	Weight	Approval Agency	Current Rating (Amps)	Bearing Type	RPM	Material - Blade	Material - Frame	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Noise	Termination	Width [y]	Features
Mechatronics Bearing Group UF12B12-BWLR	115 VAC	50000 Hrs	11 W	53 CFM	1.48 mł/min	0.725 lb	328.85 g	CE cUL TUV UL	110 mA	Ball	2000 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	120 mm	120 mm	0.11 in H2O	27.4 Pa	33 dB(A)	2 Wire Leads	25 mm
Mechatronics Bearing Group UF12B23-BTHR	230 VAC	50000 Hrs	14 Watts	75 CFM	2.1 m³/min	0.725 lb	328.85 g	CE cUL TUV UL	70 mA	Ball	2900 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	120 mm	120 mm	0.24 in H2O	59.8 Pa	42 dB	2 Terminals	25 mm
Mechatronics Bearing Group UF12B12-BTLR	115 VAC	50000 Hrs	11 W	53 CFM	1.48 mł/min	0.725 lb	328.85 g	CE cUL TUV UL	110 mA	Ball	2000 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	120 mm	120 mm	0.11 in H2O	27.4 Pa	33 dB(A)	2 Terminals	25 mm
Mechatronics Bearing Group UF12B12-BTHR	115 VAC	50000 Hrs	11 W	75 CFM	2.1 m³/min	0.725 lb	328.85 g	CE cUL TUV UL	120 mA	Ball	2900 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	120 mm	120 mm	0.24 in H2O	59.8 Pa	42 dB	2 Terminals	25 mm
Mechatronics Bearing Group UF12B12-BWHR-CC	115 VAC	50000 Hrs	11 W	75 CFM	2.1 m³/min	0.725 lb	328.85 g	CE cUL TUV UL	150 mA	Ball	2900 RPM	Polybutylene Terephthalate (PBT)	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	120 mm	120 mm	0.24 in H2O	59.8 Pa	42 dB	2 Wire Leads	25 mm	Conformal Coating

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 20.09

Description

General part information

UF12B Series

Fan Tubeaxial 115VAC Square - 120mm L x 120mm H Ball 75.0 CFM (2.10m³/min) 2 Wire Leads

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Installation Instructions

Datasheet
