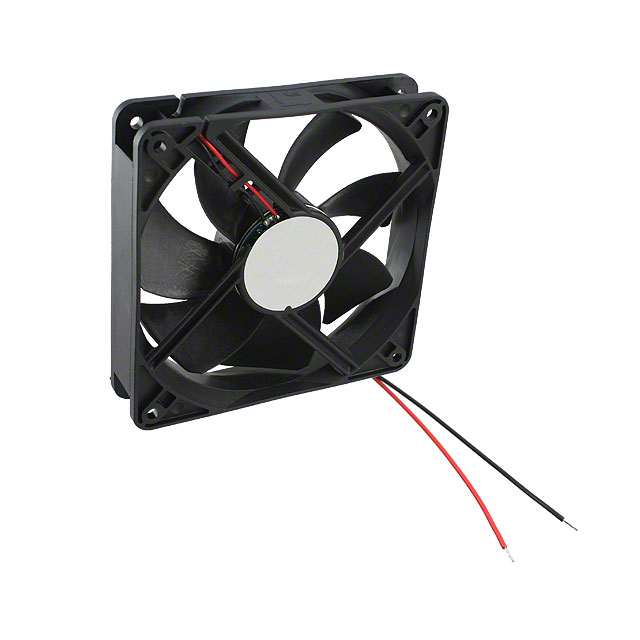

MEC0252V2-000U-A99

Active

Sunon Fans

FAN AXIAL 120X25MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 120X25MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MEC0252V2-000U-A99

Air Flow	93 CFM
Air Flow	2.6 m³/min
Approval Agency	TUV, cUR, UL, CE
Current Rating (Amps)	0.146 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	40.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.5 W
RPM	2700 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.22 in H2O
Static Pressure	54.8 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	10 VDC
Weight	162.84 g
Weight	0.359 lb
Width [y]	25 mm

Part	Features	Width [y]	Power (Watts)	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Termination	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Weight	Weight	Material - Blade	RPM	Voltage - Rated	Noise	Static Pressure	Static Pressure	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
Sunon Fans MEC0252V2-000U-A99	Auto Restart	25 mm	3.5 W	CE cUR TUV UL	120 mm	120 mm	70000 Hrs	2 Wire Leads	Tubeaxial	10 VDC	27.6 VDC	93 CFM	2.6 m³/min	162.84 g	0.359 lb	Polybutylene Terephthalate (PBT)	2700 RPM	24 VDC	40.5 dB(A)	0.22 in H2O	54.8 Pa	0.146 A	70 °C	70 °C	-10 °C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Vapo-Bearing™ 93.0 CFM (2.60m³/min) 2 Wire Leads
