9BMB24K201

Active

Sanyo Denki America Inc.

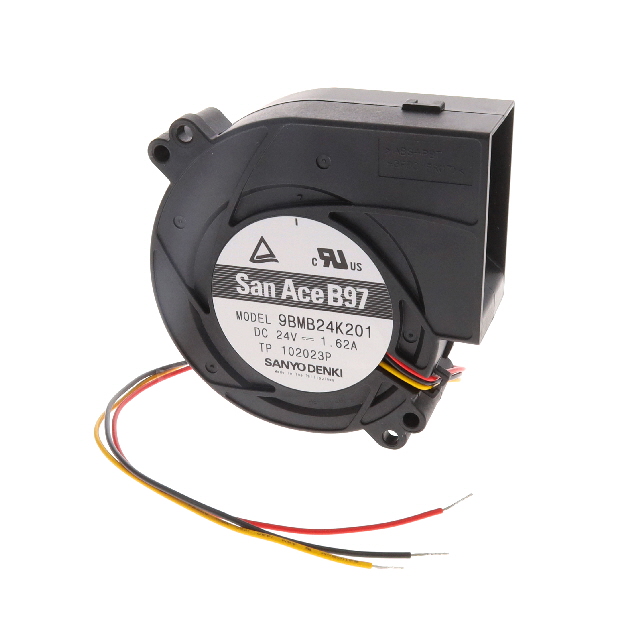

FAN BLOWER 97.1X33MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

9BMB24K201

Active

Sanyo Denki America Inc.

FAN BLOWER 97.1X33MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9BMB24K201

Air Flow	1.59 mł/min
Air Flow	56.8 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	1.62 A
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	38.88 W
RPM	6850 RPM
Size / Dimension [x]	97.1 mm
Size / Dimension [z]	95 mm
Static Pressure	5.14 in H2O
Static Pressure	1280 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	21.6 VDC
Weight	0.419 lb
Weight	190.06 g
Width [y]	33 mm

9BMB24 Series

Part	RPM	Voltage - Rated	Material - Blade	Bearing Type	Power (Watts)	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Fan Type	Lifetime @ Temp.	Weight	Weight	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [z]	Size / Dimension [x]	Features	Approval Agency	Width [y]	Air Flow	Air Flow	Noise	Termination
Sanyo Denki America Inc. 9BMB24F201	4500 RPM	24 VDC	Plastic	Ball	10.8 W	1.647 in H2O	410 Pa	-20 °C	70 °C	-20 C	70 °C	450 mA	Blower	40000 Hrs	0.419 lb	190.06 g	Plastic	26.4 VDC	12 VDC	95 mm	97.1 mm	Locked Rotor Protection Speed Sensor (Tach)	cURus TUV	33 mm	36.7 CFM	1.03 m³/min	56 dB	3 Wire Leads
Sanyo Denki America Inc. 9BMB24H202	4850 RPM	24 VDC	Plastic	Ball	13.2 W	1.968 in H2O	490 Pa	-20 °C	70 °C	-20 C	70 °C	0.55 A	Blower	40000 Hrs	0.419 lb	190.06 g	Plastic	26.4 VDC	12 VDC	95 mm	97.1 mm		cURus TUV	33 mm	39.2 CFM	1.1 m³/min	57 dB	2 Wire Leads
Sanyo Denki America Inc. 9BMB24P2S01	5250 RPM	24 VDC	Plastic	Ball	16.8 W	2.45 in H2O	610 Pa	-20 °C	70 °C	-20 C	70 °C	0.7 A	Blower	40000 Hrs	0.419 lb	190.06 g	Plastic	26.4 VDC	21.6 VDC	95 mm	97.1 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	cURus TUV	33 mm	43.1 CFM	1.21 mł/min	59 dB(A)	4 Wire Leads
Sanyo Denki America Inc. 9BMB24P2H01	4850 RPM	24 VDC	Plastic	Ball	13.2 W	1.968 in H2O	490 Pa	-20 °C	70 °C	-20 C	70 °C	0.55 A	Blower	40000 Hrs	0.419 lb	190.06 g	Plastic	26.4 VDC	21.6 VDC	95 mm	97.1 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	cURus TUV	33 mm	39.2 CFM	1.1 m³/min	57 dB	4 Wire Leads
Sanyo Denki America Inc. 9BMB24H201	4850 RPM	24 VDC	Plastic	Ball	13.2 W	1.968 in H2O	490 Pa	-20 °C	70 °C	-20 C	70 °C	0.55 A	Blower	40000 Hrs	0.419 lb	190.06 g	Plastic	26.4 VDC	12 VDC	95 mm	97.1 mm	Locked Rotor Protection Speed Sensor (Tach)	cURus TUV	33 mm	39.2 CFM	1.1 m³/min	57 dB	3 Wire Leads
Sanyo Denki America Inc. 9BMB24H2D01	4850 RPM	24 VDC	Plastic	Ball	13.2 W	1.968 in H2O	490 Pa	-20 °C	70 °C	-20 C	70 °C	0.55 A	Blower	40000 Hrs	0.419 lb	190.06 g	Plastic	26.4 VDC	12 VDC	95 mm	97.1 mm	Locked Rotor Sensor	cURus TUV	33 mm	39.2 CFM	1.1 m³/min	57 dB	3 Wire Leads
Sanyo Denki America Inc. 9BMB24P2K01	6850 RPM	24 VDC	Plastic	Ball	38.88 W	5.14 in H2O	1280 Pa	-20 °C	70 °C	-20 C	70 °C	1.62 A	Blower	40000 Hrs	0.419 lb	190.06 g	Plastic	26.4 VDC	21.6 VDC	95 mm	97.1 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	cURus TUV	33 mm	56.8 CFM	1.59 mł/min		4 Wire Leads
Sanyo Denki America Inc. 9BMB24K201	6850 RPM	24 VDC	Plastic	Ball	38.88 W	5.14 in H2O	1280 Pa	-20 °C	70 °C	-20 C	70 °C	1.62 A	Blower	40000 Hrs	0.419 lb	190.06 g	Plastic	26.4 VDC	21.6 VDC	95 mm	97.1 mm	Locked Rotor Protection Speed Sensor (Tach)	cURus TUV	33 mm	56.8 CFM	1.59 mł/min		3 Wire Leads
Sanyo Denki America Inc. 9BMB24F202	4500 RPM	24 VDC	Plastic	Ball	10.8 W	1.647 in H2O	410 Pa	-20 °C	70 °C	-20 C	70 °C	450 mA	Blower	40000 Hrs	0.419 lb	190.06 g	Plastic	26.4 VDC	12 VDC	95 mm	97.1 mm		cURus TUV	33 mm	36.7 CFM	1.03 m³/min	56 dB	2 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.28
		10	$ 28.57
		32	$ 27.49
		64	$ 25.68
		128	$ 23.69
		256	$ 23.33

Description

General part information

9BMB24 Series

Fan Blower 24VDC Rectangular/Rounded - 97.1mm L x 95mm H Ball 56.8 CFM (1.59m³/min) 3 Wire Leads
