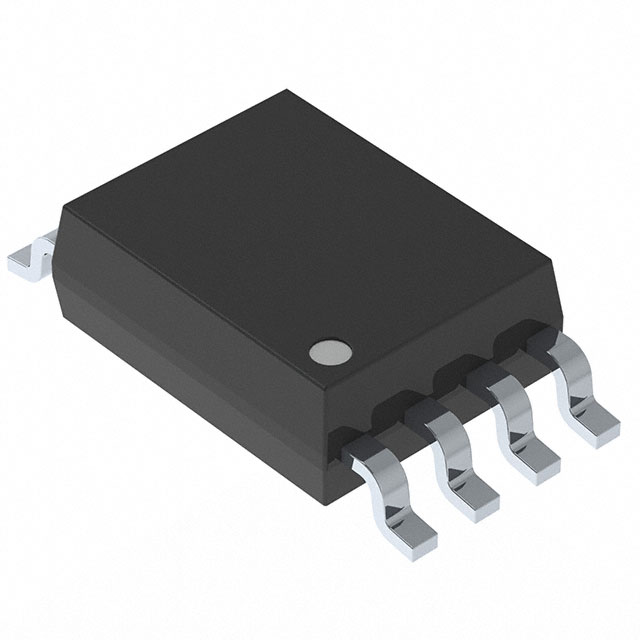

NJM062CAG-TE2
ActiveNisshinbo Micro Devices Inc
IC OPAMP JFET 2 CIRCUIT 8SOP
Deep-Dive with AI
Search across all available documentation for this part.
NJM062CAG-TE2
ActiveNisshinbo Micro Devices Inc
IC OPAMP JFET 2 CIRCUIT 8SOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM062CAG-TE2 |
|---|---|
| Amplifier Type | J-FET |
| Current - Input Bias | 30 pA |
| Current - Supply | 200 µA |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Slew Rate | 3.5 V/µs |
| Supplier Device Package | 8-SOP |
| Voltage - Input Offset | 3 mV |
| Voltage - Supply Span (Max) [Max] | 36 V |
| Voltage - Supply Span (Min) [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 0.22 | |
| 5000 | $ 0.20 | |||
| 12500 | $ 0.19 | |||
| 25000 | $ 0.18 | |||
Description
General part information
NJM062 Series
J-FET Amplifier 2 Circuit 8-SOP
Documents
Technical documentation and resources
No documents available
