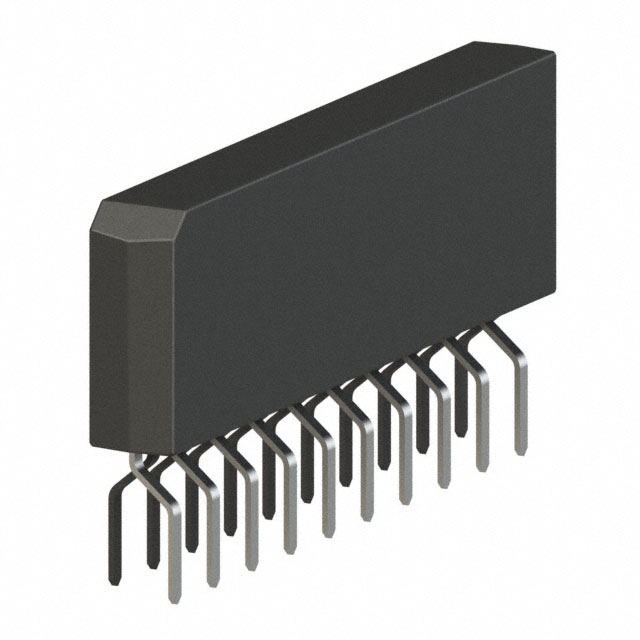

QS74FCT157ATZ

Obsolete

Quality Semiconductor

IC MULTIPLEXER 2 X 8:4

Search across all available documentation for this part.

Obsolete

Quality Semiconductor

IC MULTIPLEXER 2 X 8:4

Technical Specifications

Parameters and characteristics for this part

Specification	QS74FCT157ATZ

Circuit [custom]	4
Circuit [custom]	8
Circuit [custom]	2
Current - Output High, Low [custom]	12 mA
Current - Output High, Low [custom]	32 mA
Independent Circuits	4
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Type	Multiplexer
Voltage Supply Source	Single Supply

Part	Voltage Supply Source	Operating Temperature [Max]	Operating Temperature [Min]	Circuit [custom]	Circuit [custom]	Circuit [custom]	Independent Circuits	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Type
Quality Semiconductor QS74FCT157TZ
Quality Semiconductor QS74FCT157TP
Quality Semiconductor QS74FCT157CTP
Quality Semiconductor QS74FCT157ATZ	Single Supply	85 °C	-40 °C	4	8	2	4	Through Hole	12 mA	32 mA	Multiplexer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	123	$ 2.44

General part information

Multiplexer 2 x 8:4

Technical documentation and resources

No documents available
