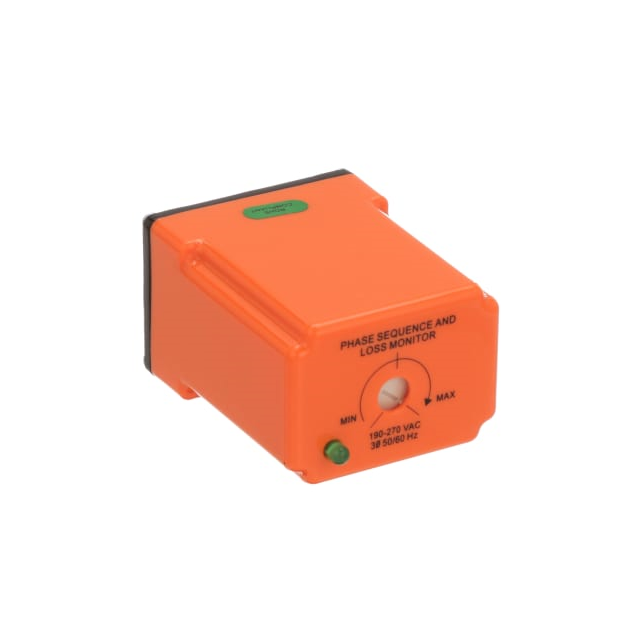

SLA-230-ASA

Active

ATC

PHASE MONITORING RELAY

Search across all available documentation for this part.

Active

ATC

PHASE MONITORING RELAY

Technical Specifications

Parameters and characteristics for this part

Specification	SLA-230-ASA

Contact Rating @ Voltage	10 A, 240 VAC
Delay Time [Max]	0.5 s
Delay Time [Min]	0.25 Sec
Mounting Type	Socketable
Trip Range [Max]	270 V AC
Trip Range [Min]	190 V AC
Trip Status	Energized High/Low
Type	Phase Sequence, Phase Loss, Voltage Sensing AC
Voltage - Supply	230 VAC

Part	Type	Circuit	Trip Status	Contact Rating @ Voltage	Voltage - Supply	Trip Range [Min]	Trip Range [Max]	Delay Time [Max]	Delay Time [Min]	Mounting Type
ATC SLA-230-ALE	Phase Loss Phase Sequence Voltage Sensing AC	DPDT (2 Form C)	Energized High/Low	5 A 240 VAC	230 VAC	190 V AC	270 V AC	0.5 s	0.25 Sec	Chassis Mount
ATC SLA-230-ASA	Phase Loss Phase Sequence Voltage Sensing AC		Energized High/Low	10 A 240 VAC	230 VAC	190 V AC	270 V AC	0.5 s	0.25 Sec	Socketable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 115.98

General part information

Phase Loss, Phase Sequence, Voltage Sensing AC 230VAC

Technical documentation and resources

No documents available
