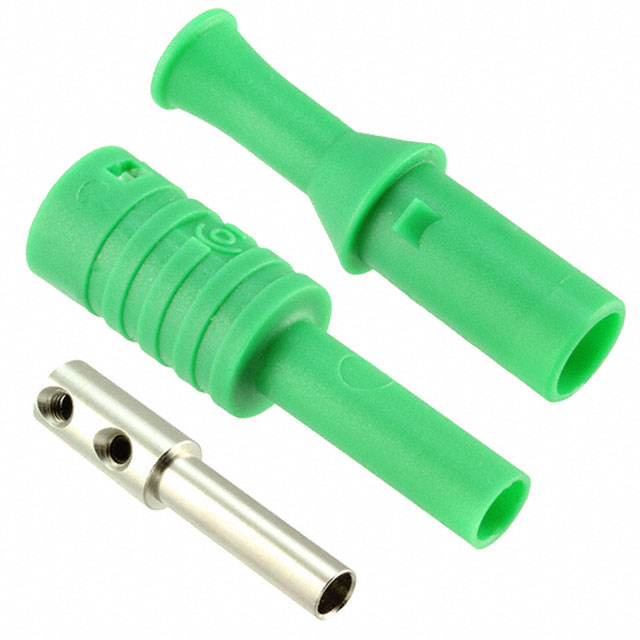

CT3134-5
ActiveCal Test Electronics
CONN BANANA JACK SLDRLESS GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CT3134-5
ActiveCal Test Electronics
CONN BANANA JACK SLDRLESS GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CT3134-5 |
|---|---|
| Body Material | Polypropylene (PP) |
| Color | Green |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Sheathed |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Solderless |
| Type | Banana Jack |
| Wire Gauge | 12 AWG |
CT3134 Series
| Part | Insulation | Type | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Material | Contact Finish | Mounting Type | Color | Termination | Plug/Mating Plug Diameter | Wire Gauge | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cal Test Electronics | Sheathed | Banana Jack | -20 C | 80 C | Female | Brass | Nickel | Free Hanging (In-Line) | Green | Solder | Standard Banana | 12 AWG | Polypropylene (PP) |
Cal Test Electronics | Sheathed | Banana Jack | -20 C | 80 C | Female | Brass | Nickel | Free Hanging (In-Line) | Blue | Solder | Standard Banana | 12 AWG | Polypropylene (PP) |
Cal Test Electronics | Sheathed | Banana Jack | -20 C | 80 C | Female | Brass | Nickel | Free Hanging (In-Line) | Red | Solderless | Standard Banana | 12 AWG | Polypropylene (PP) |
Cal Test Electronics | Sheathed | Banana Jack | -20 C | 80 C | Female | Brass | Nickel | Free Hanging (In-Line) | White | Solder | Standard Banana | 12 AWG | Polypropylene (PP) |
Cal Test Electronics | Sheathed | Banana Jack | -20 C | 80 C | Female | Brass | Nickel | Free Hanging (In-Line) | Green | Solderless | Standard Banana | 12 AWG | Polypropylene (PP) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.40 | |
Description
General part information
CT3134 Series
Banana Jack Connector Standard Banana Solderless Green
