Q-2Y04K0008012I

Active

Amphenol Custom Cable

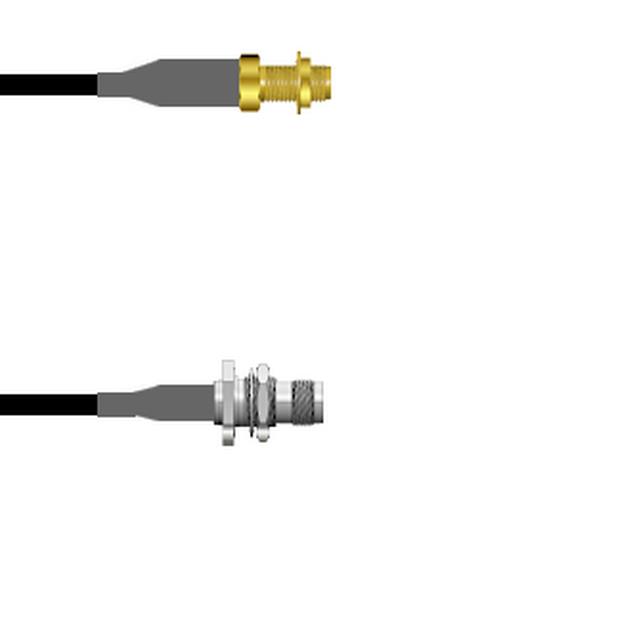

CBL ASSY SMA-TNC JACK-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2Y04K0008012I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC JACK-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2Y04K0008012I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-2Y04K0 Series

Part	Style	Features	2nd Connector	1st Connector Mounting Feature	2nd Connector Mounting Type	Color	2nd Contact Gender	1st Connector Mounting Type	Overall Impedance	1st Contact Gender	Cable Type	Frequency - Max [Max]	Length	Length	Length	1st Connector	Connector Impedance	Cable Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-2Y04K0008072I	SMA to TNC	Shielded	TNC Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Black	Female	Panel Mount	50 Ohms	Female	RG-58	1 GHz	6 ft	72 in	1.8 m	SMA Jack	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2Y04K0008009I	SMA to TNC	Shielded	TNC Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Black	Female	Panel Mount	50 Ohms	Female	RG-58	1 GHz		9 "	228.6 mm	SMA Jack	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2Y04K0008036I	SMA to TNC	Shielded	TNC Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Black	Female	Panel Mount	50 Ohms	Female	RG-58	1 GHz		36 in	91.44 cm	SMA Jack	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2Y04K00081.5M	SMA to TNC	Shielded	TNC Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Black	Female	Panel Mount	50 Ohms	Female	RG-58	1 GHz	4.9 ft	59.1 in	1.5 m	SMA Jack	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2Y04K0008084I	SMA to TNC	Shielded	TNC Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Black	Female	Panel Mount	50 Ohms	Female	RG-58	1 GHz	7 ft	84 in	2.1 m	SMA Jack	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2Y04K0008018I	SMA to TNC	Shielded	TNC Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Black	Female	Panel Mount	50 Ohms	Female	RG-58	1 GHz				SMA Jack	50 Ohms	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2Y04K0008048I	SMA to TNC	Shielded	TNC Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Black	Female	Panel Mount	50 Ohms	Female	RG-58	1 GHz	4 ft	48 in	1200 mm	SMA Jack	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2Y04K00082.5M	SMA to TNC	Shielded	TNC Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Black	Female	Panel Mount	50 Ohms	Female	RG-58	1 GHz	8.2 '	98.4 in	2.5 m	SMA Jack	50 Ohms	50 Ohms
Amphenol Custom Cable Q-2Y04K0008012I	SMA to TNC	Shielded	TNC Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	Black	Female	Panel Mount	50 Ohms	Female	RG-58	1 GHz		12 "	304.8 mm	SMA Jack	50 Ohms	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 70.68
		25	$ 69.30
		50	$ 67.93
		100	$ 66.56
		250	$ 65.18

Description

General part information

Q-2Y04K0 Series

Cable Assembly Coaxial SMA to TNC RG-58 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
