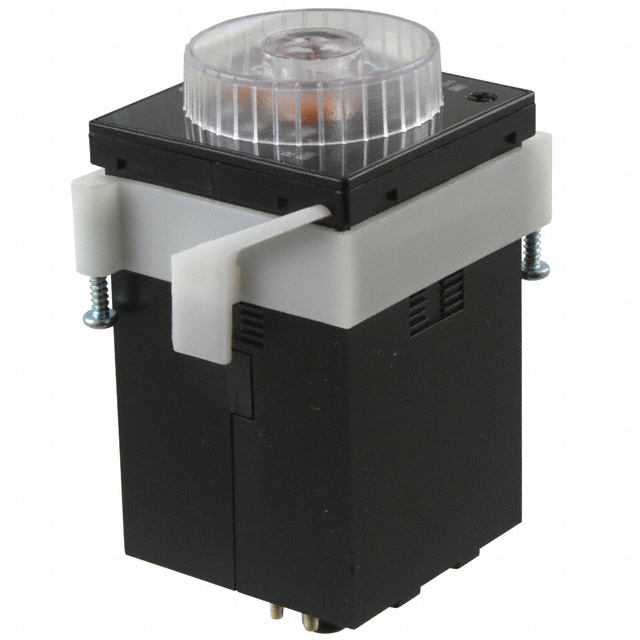

88886106
ObsoleteCrouzet
RELAY TIME DELAY 300HR 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
88886106
ObsoleteCrouzet
RELAY TIME DELAY 300HR 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 88886106 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 5 A |
| Delay Time [Max] | 300 Hrs |
| Delay Time [Min] | 0.02 Sec |
| Function | On-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VDC, 240 VAC |
| Voltage - Supply [Min] | 12 V, 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
888861 Series
On-Delay Time Delay Relay DPDT (2 Form C) 0.02 Sec ~ 300 Hrs Delay 5A @ 250VAC Socketable
