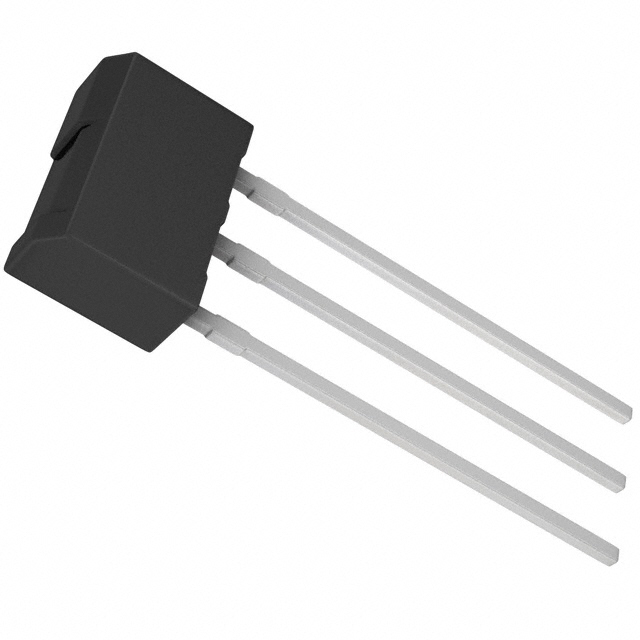

2SA1776TV2P

Obsolete

Rohm Semiconductor

TRANS PNP 400V 0.5A ATV

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

TRANS PNP 400V 0.5A ATV

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1776TV2P

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce	82 hFE
Frequency - Transition	12 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	3-SIP
Power - Max [Max]	1 W
Supplier Device Package	ATV
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max)	400 V

Part	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Operating Temperature	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce
Rohm Semiconductor 2SA1776TV2Q	Through Hole	1 V	12 MHz	3-SIP	400 V	500 mA	120	PNP	1 µA	ATV	150 °C	1 W
Rohm Semiconductor 2SA1776TV2P	Through Hole	1 V	12 MHz	3-SIP	400 V	500 mA		PNP	1 µA	ATV	150 °C	1 W	82 hFE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 400 V 500 mA 12MHz 1 W Through Hole ATV
