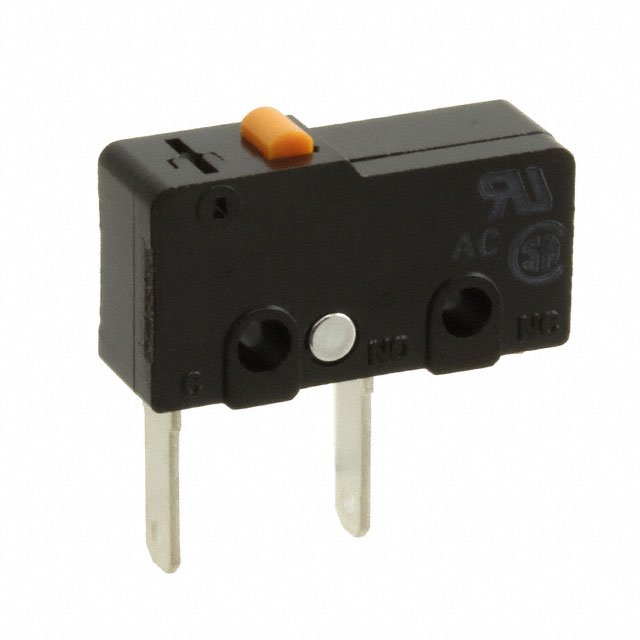

SS-5-F-3 DASH T
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NO 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
SS-5-F-3 DASH T
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NO 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-5-F-3 DASH T |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 5 A |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Electrical Life | 200000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 30000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 50 gf |
| Operating Position | 8.4 mm |
| Operating Position | 0.33 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.02 in |
| Overtravel | 0.5 mm |
| Pretravel | 0.02 in |
| Pretravel | 0.5 mm |
| Release Force | 4.079 gf |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.06 | |
| 10 | $ 1.71 | |||
| 25 | $ 1.58 | |||
| 50 | $ 1.50 | |||
| 100 | $ 1.41 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.24 | |||
| 1000 | $ 1.17 | |||
| 5000 | $ 1.08 | |||
Description
General part information
SS-5-F Series
Switch SPST-NO Through Hole
