M2410 SL199

Active

ALPHA WIRE

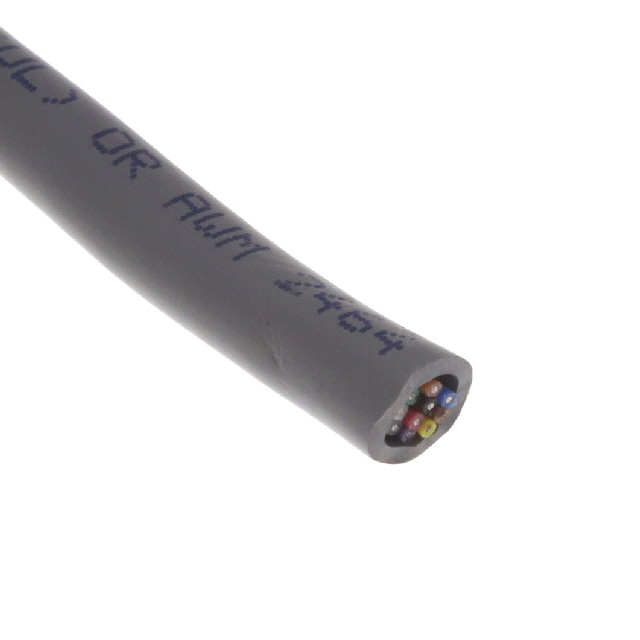

CABLE 10COND 28AWG SHLD 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 28AWG SHLD 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M2410 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	28 AWG

Part	Voltage	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Ratings	Jacket (Insulation) Material	Cable Type	Jacket Color	Features	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Number of Conductors	Length	Length
ALPHA WIRE M2410 SL199	300 V	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Aluminum Copper Tinned	36 AWG	7	65 % 100 %	UL Style 2464	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Slate	Drain Wire Rip Cord	28 AWG	Copper Tinned	5.84 mm	0.23 in	Braid Foil	10	914.4 m	3000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.91

General part information

10 Conductor Multi-Conductor Cable Slate 28 AWG Foil, Braid 3000' (914.4m)
