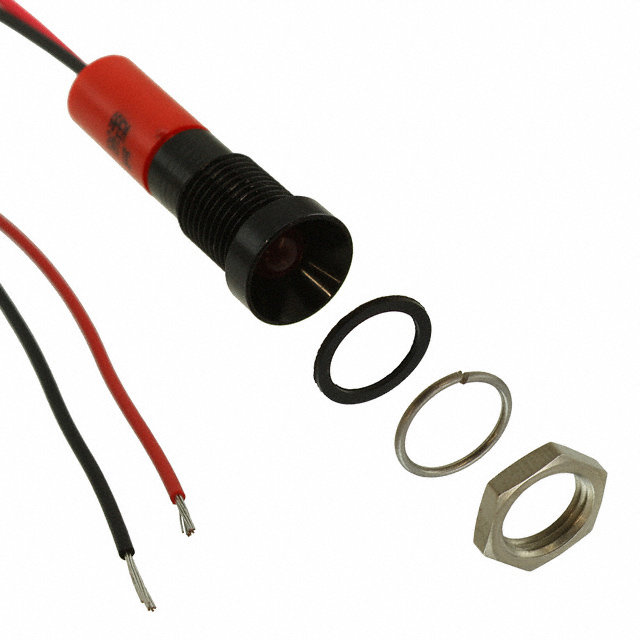

Q8R3BXXHR110E

Active

APEM

LED PMI RECESSED 110VAC RED

Search across all available documentation for this part.

Active

APEM

LED PMI RECESSED 110VAC RED

Technical Specifications

Parameters and characteristics for this part

Specification	Q8R3BXXHR110E

Current	6 mA
Ingress Protection	IP67
Lamp Color	Red
Lens Color	Red
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	6000 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	110 V

Part	Type	Termination Style	Panel Cutout Shape	Lamp Color	Lens Size	Lens Size	Lens Transparency	Lens Color	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Millicandela Rating	Lens Style	Ratings	Voltage	Ingress Protection	Current	Viewing Angle
APEM Q8R3BXXHR110E	LED	Wire Leads - 7.87" (200.00mm)	Round	Red	T-1 3/4	5 mm	Diffused	Red	0.31 in	7.87 mm	6000 mcd	Round with Domed Top	AC	110 V	IP67	6 mA	100 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 100° 110V 6mA Wire Leads - 7.87" (200.00mm)
