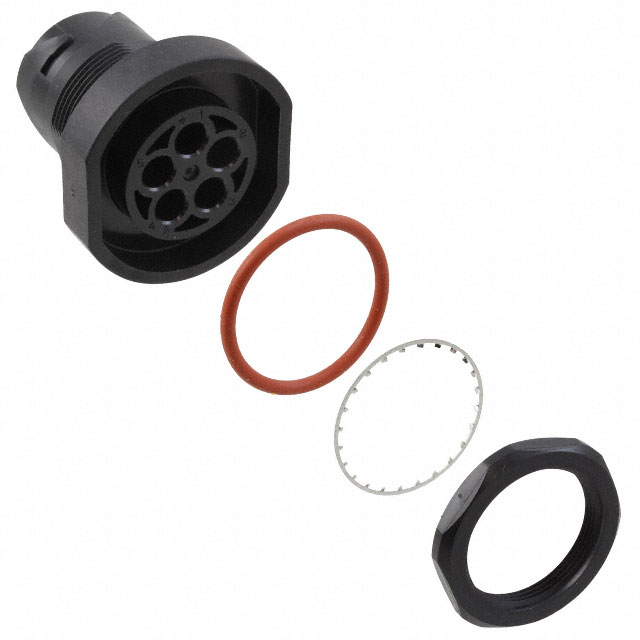

HR41-25WBRA-5PC

Active

Hirose Electric USA, Inc.

CONN RCPT HSNG MALE 5POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR41-25WBRA-5PC

Active

Hirose Electric USA, Inc.

CONN RCPT HSNG MALE 5POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR41-25WBRA-5PC

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	5
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	25
Shielding	Unshielded
Type	For Male Pins

HR41 Series

Part	Connector Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Mounting Type	Contact Type	Contact Shape	Orientation	Insert Material	Fastening Type	Shielding	Type	Housing Color	Material Flammability Rating	Shell Size - Insert	Ingress Protection	Features	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Material	Termination Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Termination	Number of Positions	Mounting Feature
Hirose Electric USA, Inc. HR41-25WBPG-3SC	Plug Housing	Contacts Not Included	-40 °C	105 ░C	Plastic	Free Hanging (In-Line)	Crimp	Circular	Keyed	Polybutylene Terephthalate (PBT)	Bayonet Lock	Unshielded	For Female Sockets	Black	UL94 V-0	25	IP67/IP68 - Dust Tight Waterproof
Hirose Electric USA, Inc. HR41-25WBPF-3SC	Plug Housing	Contacts Not Included	-40 °C	105 ░C		Free Hanging (In-Line)	Crimp	Circular	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Unshielded	For Female Sockets	Black	UL94 V-0	25	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut Ground Strain Relief
Hirose Electric USA, Inc. HR41-25WBJG-5PC	Jack Housing	Contacts Not Included	-40 °C	105 ░C	Plastic	Free Hanging (In-Line)	Crimp	Circular	Keyed	Polybutylene Terephthalate (PBT)	Bayonet Lock	Unshielded	For Male Pins	Black	UL94 V-0	25	IP67/IP68 - Dust Tight Waterproof	Backshell Ground Strain Relief
Hirose Electric USA, Inc. HR41-25WBPD-3SC	Plug Housing	Contacts Not Included	-40 °C	105 ░C		Free Hanging (In-Line)	Crimp	Circular	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Unshielded	For Female Sockets	Black	UL94 V-0	25	IP67/IP68 - Dust Tight Waterproof	Backshell Coupling Nut Ground Strain Relief
Hirose Electric USA, Inc. HR41-SC-121							Socket						Stamped						14 AWG	16 AWG	Copper Alloy	Copper Alloy	8 çin	0.203 çm	Gold	Crimp
Hirose Electric USA, Inc. HR41-SC-151(02)
Hirose Electric USA, Inc. HR41-25WBJB-3PC	Jack Housing	Contacts Not Included	-40 °C	105 ░C		Free Hanging (In-Line)	Crimp	Circular	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Unshielded	For Male Pins	Black	UL94 V-0	25	IP67/IP68 - Dust Tight Waterproof	Backshell Ground Strain Relief
Hirose Electric USA, Inc. HR41-25WBRA-5PC	Receptacle Housing	Contacts Not Included	-40 °C	105 ░C			Crimp	Circular	Keyed	Nylon Polyamide (PA)	Bayonet Lock	Unshielded	For Male Pins	Black	UL94 V-0	25	IP67/IP68 - Dust Tight Waterproof										5	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 16.85

Description

General part information

HR41 Series

5 (4 + PE) Position Circular Connector Receptacle Housing Panel Mount
