50.1112/EMV/R

Active

Jacob GmbH

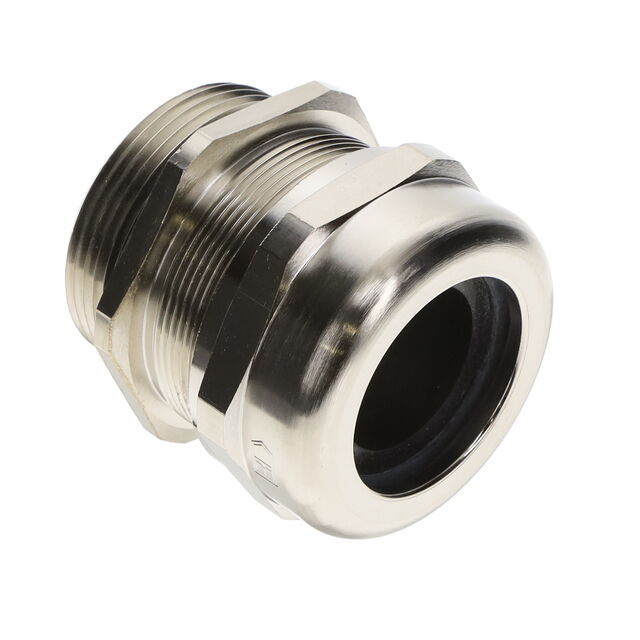

CABLE GLAND 21-35MM 1 1/2" NPT

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 21-35MM 1 1/2" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	50.1112/EMV/R

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	35 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.378 in
Outside Cable Diameter (Min)	21 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.827 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	1 1/2" NPT
Type	Cable Gland

Part	Type	Includes	Ingress Protection	Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)
Jacob GmbH 50.1112/EMV/R	Cable Gland	O-Ring Seal	IP68 - Dust Tight Waterproof	Brass Nickel Plated	100 °C	-40 °C	1 1/2" NPT	0.591 in	15 mm	35 mm	1.378 in	Silver	0.827 in	21 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 1 1/2" NPT Silver
