WB3M200VD1T

Obsolete

JAE Electronics

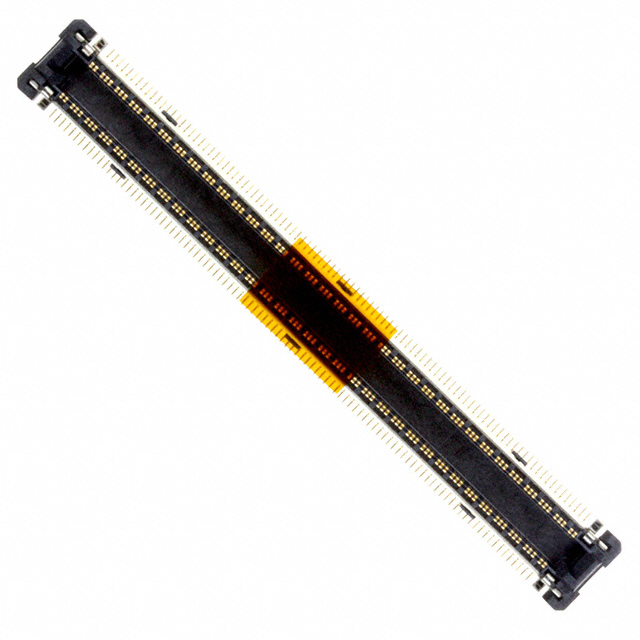

CONN PLUG 200POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN PLUG 200POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WB3M200VD1T

Connector Type	Outer Shroud Contacts, Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Solder Retention, Board Guide
Height Above Board	4.7 mm
Height Above Board	0.185 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Mounting Type	Number of Rows
JAE Electronics WB3M200VD2TR1000
JAE Electronics WB3M200VD2T	Gold	3.7 mm	0.146 in	0.5 mm	0.02 in	Board Guide Solder Retention	Outer Shroud Contacts Plug	0.76 Ám	30 Áin	4 mm	Surface Mount	2
JAE Electronics WB3M200VD1T	Gold	4.7 mm	0.185 in	0.5 mm	0.02 in	Board Guide Solder Retention	Outer Shroud Contacts Plug	0.76 Ám	30 Áin	5 mm	Surface Mount	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

200 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
