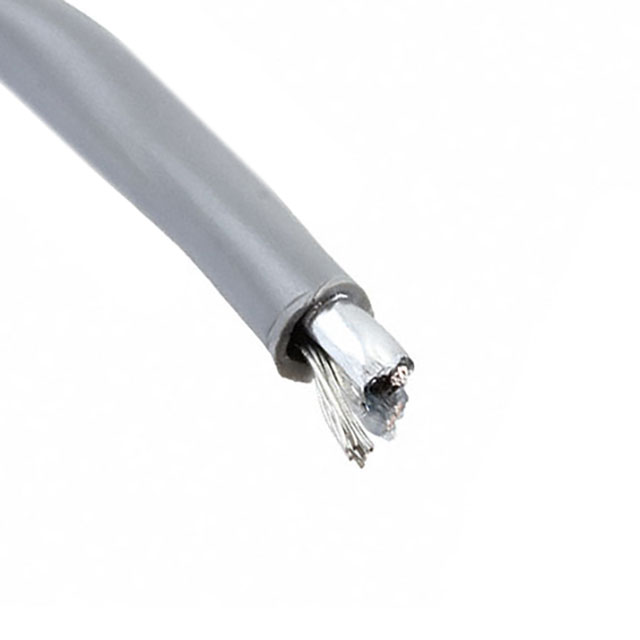

M13226 SL001

Active

ALPHA WIRE

CABLE 2COND 22AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M13226 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.178 in
Jacket (Insulation) Diameter [diameter]	4.52 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Cable Type	Shield Type	Conductor Insulation	Shield Material	Number of Conductors	Jacket (Insulation) Material	Conductor Material	Wire Gauge	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Shield Coverage	Length	Length
ALPHA WIRE M13226 SL002	0.025 in	0.635 mm	500 '	152.4 m	Multi-Conductor	Foil	Polyethylene (PE)	Aluminum	2	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG	Slate	28	7	Drain Wire	0.178 in	4.52 mm	300 V	100 %
ALPHA WIRE M13226 SL001	0.025 in	0.635 mm			Multi-Conductor	Foil	Polyethylene (PE)	Aluminum	2	Poly-Vinyl Chloride (PVC)	Copper Tinned	22 AWG	Slate	28	7	Drain Wire	0.178 in	4.52 mm	300 V	100 %	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.46

General part information

2 Conductor Multi-Conductor Cable Slate 22 AWG Foil 1000.0' (304.8m)
