Technical Specifications
Parameters and characteristics for this part
| Specification | H2ABT-10110-S4 |
|---|---|
| Color | Slate |
| Contact End | Socket to Pin |
| Contact Finish | Tin |
| Length | 254 mm |
| Length [x] | 10 in |
| Number of Conductors | 1 |
| Number of Rows | 1 |
| Wire Gauge | 24 AWG |
H2ABT Series
...
| Part | Contact End | Number of Rows | Color | Wire Gauge | Contact Finish | Number of Conductors | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Socket to Pin | 1 | Blue | 26 AWG | Tin | 1 | ||||
Hirose Electric USA, Inc. | Socket to Pin | 1 | White | 26 AWG | Tin | 1 | 5 in | 127 mm | ||
Hirose Electric USA, Inc. | Socket to Pin | 1 | Violet | 26 AWG | Tin | 1 | 152.4 mm | 6 in | ||
Hirose Electric USA, Inc. | Socket to Pin | 1 | Green | 24 AWG | Tin | 1 | 203.2 mm | 8 in | ||
Hirose Electric USA, Inc. | Socket to Pin | 1 | Slate | 24 AWG | Tin | 1 | 10 in | 254 mm | ||
Hirose Electric USA, Inc. | Socket to Pin | 1 | White | 28 AWG | Tin | 1 | 152.4 mm | 6 in | ||
Hirose Electric USA, Inc. | Socket to Pin | 1 | Brown | 24 AWG | Tin | 1 | 10 in | 254 mm | ||
Hirose Electric USA, Inc. | Socket to Pin | 1 | Slate | 26 AWG | Tin | 1 | 12 in | 304.8 mm | ||
Hirose Electric USA, Inc. | Socket to Pin | 1 | Violet | 28 AWG | Tin | 1 | 5 in | 127 mm | ||
Hirose Electric USA, Inc. | Socket to Pin | 1 | Yellow | 28 AWG | Tin | 1 | 12 in | 304.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 0.76 | |
| 30 | $ 0.67 | |||
| 50 | $ 0.63 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.46 | |||
| 2500 | $ 0.41 | |||
| 5000 | $ 0.39 | |||
Description
General part information
H2ABT Series

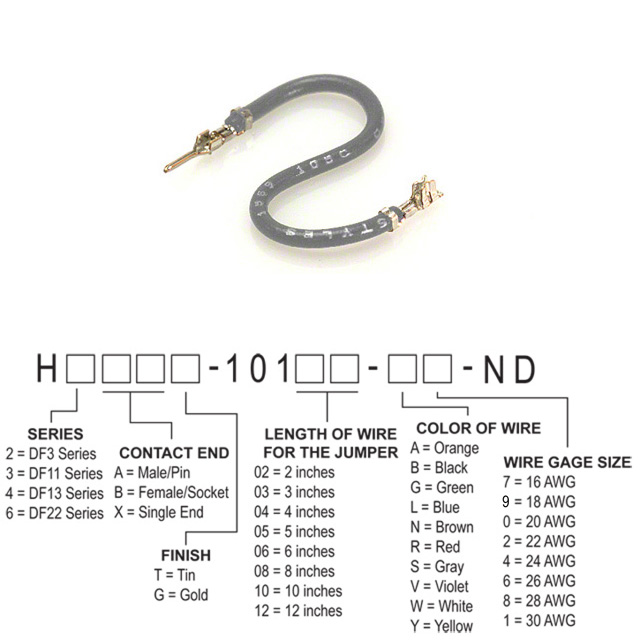

Slate 24 AWG Jumper Lead Socket to Pin Tin 10.0" (254.0mm)
