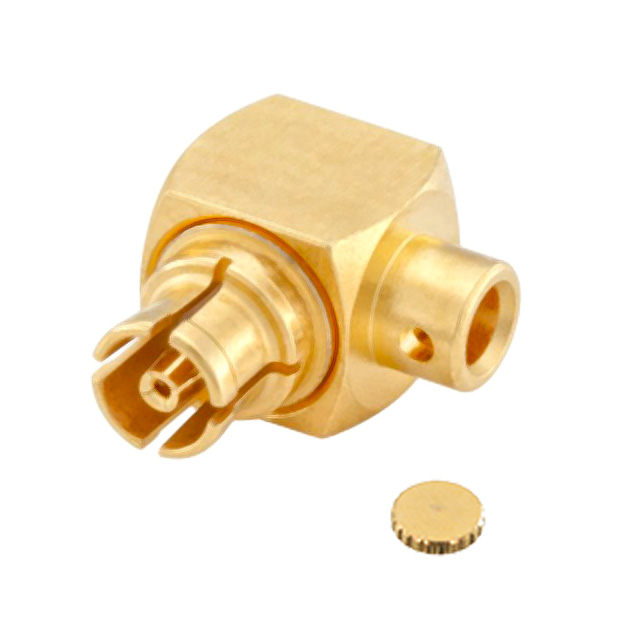

18K202-270L5

Active

Rosenberger

CONN SMP MINI JACK R/A 50OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN SMP MINI JACK R/A 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	18K202-270L5

Body Finish	Gold
Body Material	Brass
Cable Group	UT-47
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, SMP
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	65 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	325 V

Part	Connector Type	Connector Style	Voltage Rating	Dielectric Material	Shield Termination	Mounting Type	Center Contact Plating	Frequency - Max [Max]	Cable Group	Housing Color	Body Finish	Body Material	Contact Termination	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Center Contact Material	Number of Ports	Fastening Type
Rosenberger 18K202-270L5	Female Socket Jack	Mini SMP	325 V	Polytetrafluoroethylene (PTFE)	Solder	Free Hanging (In-Line) Right Angle	Gold	65 GHz	UT-47	Gold	Gold	Brass	Solder	50 Ohms	155 °C	-55 °C	1 Connector 1 End Cap	Beryllium Copper	1	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP, Mini Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
