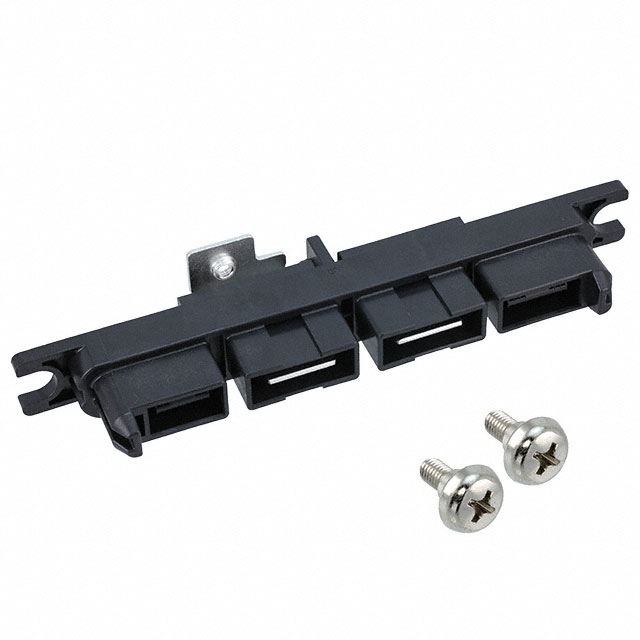

PS3-2UP/12P/16P(01)

Obsolete

Hirose Electric USA, Inc.

CONN RECEPTACLE 150A MALE

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RECEPTACLE 150A MALE

Technical Specifications

Parameters and characteristics for this part

Specification	PS3-2UP/12P/16P(01)

Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Current Rating (Amps)	150 A
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Termination	Screw

Part	Accessory Type	For Use With/Related Products	Color	Termination	Connector Type	Features	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Pitch [x]	Pitch [x]	Voltage Rating	Connector Style	Contact Layout, Typical	Number of Positions Loaded	Connector Usage	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical	Number of Columns
Hirose Electric USA, Inc. PS3-2U-DC	Dust Cap	PS3 Series Plug or Receptacle
Hirose Electric USA, Inc. PS3-2US/12S/16S			Black	Screw	Plug	Screws	Silver	-40 °C	105 ░C	2	150 A	UL94 V-0
Hirose Electric USA, Inc. PS3-2US/12S/16S-FA			Black	Solder	Receptacle Female Blade Sockets and Male Pins	Board Guide	Gold	-40 °C	105 ░C	18	150 A	UL94 V-0	1.671 in	42.45 mm	1000 VAC	Futurebus+®	2 16	All	Backplane	Through Hole	8 çin	0.203 çm	1
Hirose Electric USA, Inc. PS3-2UP/12P/16P-FA			Black	Solder	Receptacle Female Blade Sockets and Male Pins	Board Guide	Gold	-40 °C	105 ░C	14	150 A	UL94 V-0	1.671 in	42.45 mm	1000 VAC	Futurebus+®		All	Backplane	Through Hole	8 çin	0.203 çm	1	12	2
Hirose Electric USA, Inc. PS3-2US			Black	Screw	Plug	Screws	Silver	-40 °C	105 ░C	2	150 A	UL94 V-0						All					1			2 Power	2
Hirose Electric USA, Inc. PS3-2UP/12P/16P(01)			Black	Screw	Receptacle		Gold	-40 °C	105 ░C		150 A	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.19

General part information

Connector Receptacle Panel Mount Black
