25056 BK005

Active

ALPHA WIRE

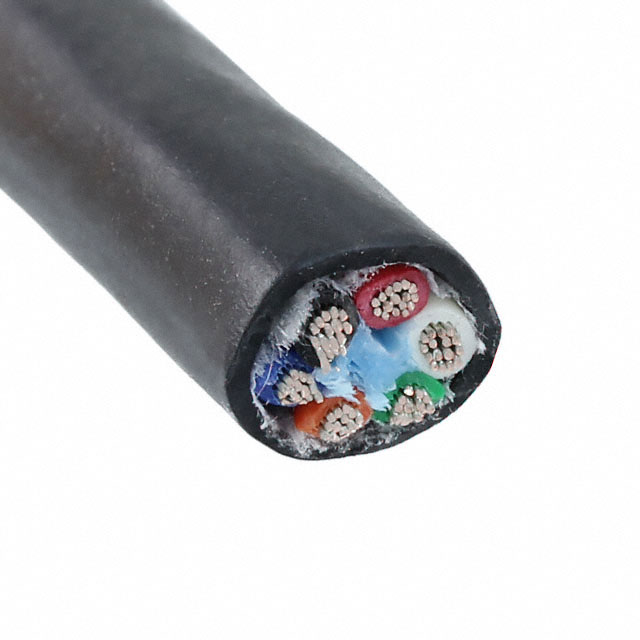

CABLE 6COND 20AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 20AWG BLACK 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25056 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.28 in
Jacket (Insulation) Diameter [diameter]	7.11 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	6
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	20 AWG

Part	Conductor Insulation	Voltage	Wire Gauge	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Material	Jacket Color	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Features	Conductor Material
ALPHA WIRE 25056 BK005	Poly-Vinyl Chloride (PVC)	300 V	20 AWG	30.5 m	100 ft	Multi-Conductor	Polyurethane (PU)	Black	ISO 10993 UL Style 20668	0.28 in	7.11 mm	-30 ░C	90 °C	28	7	6	Biological Compatibility Rip Cord	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Conductor Multi-Conductor Cable Black 20 AWG 100.0' (30.5m)
