APFA3010SURCGKQBDC

Active

Kingbright

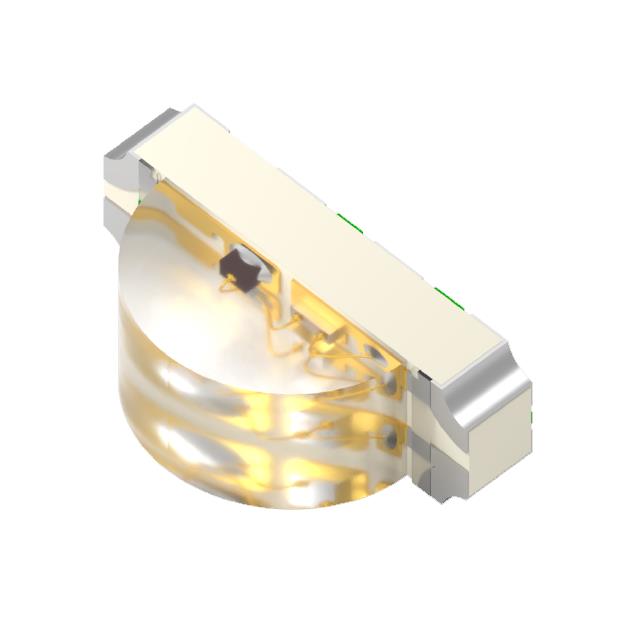

LED RGB CLEAR CHIP SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APFA3010SURCGKQBDC

Active

Kingbright

LED RGB CLEAR CHIP SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APFA3010SURCGKQBDC

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating [custom]	50 mcd
Millicandela Rating [custom]	250 mcd
Millicandela Rating [custom]	100 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	4-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	1.5 mm
Supplier Device Package	Chip LED
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V, 1.9 V, 2.1 V
Wavelength - Dominant	470 nm, 570 nm, 630 nm
Wavelength - Peak [custom]	574 nm
Wavelength - Peak [custom]	468 nm
Wavelength - Peak [custom]	650 nm

APFA3010 Series

Part	Supplier Device Package	Lens Style	Mounting Type	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Lens Size [x]	Lens Size [y]	Color	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Configuration	Viewing Angle	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Lens Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak	Height (Max) [Max]
Kingbright APFA3010SEEZGQBDC	Chip LED	Rectangle with Domed Top	Surface Mount Right Angle	20 mA	20 mA	20 mA	465 nm 525 nm 621 nm	630 nm	460 nm	515 nm	1.5 mm	3 mm	Clear	2 mm	1 mm	Blue Green Red	4-SMD No Lead	70 mcd	300 mcd	140 mcd	Common Anode	120 °	2 V 3.3 V 3.3 V	1 mm	Colorless
Kingbright APFA3010LSEKJ3ZGKQBC	4-SMD	Rectangle with Domed Top	Surface Mount Right Angle	2 mA	2 mA	2 mA	465 nm 525 nm 625 nm				1.5 mm	3 mm	Clear	2 mm	1 mm	Blue Green Red	4-SMD No Lead	10 mcd	60 mcd	40 mcd	Common Cathode	120 °			Colorless	2.7 V	1.8 V	2.7 V	460 nm 515 nm 640 nm	1.2 mm
Kingbright APFA3010LSEEZGKQBKC	4-SMD	Rectangle with Domed Top	Surface Mount Right Angle	2 mA	2 mA	2 mA	465 nm 525 nm 621 nm	630 nm	460 nm	515 nm	1.5 mm	3 mm	Clear	2 mm	1 mm	Blue Green Red	4-SMD No Lead	10 mcd	60 mcd	15 mcd	Common Anode	120 °			Colorless	3.1 V	2.1 V	3.1 V		1.2 mm
Kingbright APFA3010SURKCGKQBDC	Chip LED	Round with Domed Top	Surface Mount Right Angle	20 mA	20 mA	20 mA	470 nm 570 nm 630 nm	650 nm	468 nm	574 nm	1.5 mm	3 mm	Clear	2 mm	1 mm	Blue Green Red	4-SMD No Lead	100 mcd	50 mcd	220 mcd	Common Anode	120 °		1 mm	Colorless	2.1 V	1.95 V	3.3 V
Kingbright APFA3010SURCGKQBDC	Chip LED	Rectangle with Domed Top	Surface Mount Right Angle	20 mA	20 mA	20 mA	470 nm 570 nm 630 nm	650 nm	468 nm	574 nm	1.5 mm	3 mm	Clear	2 mm	1 mm	Blue Green Red	4-SMD No Lead	100 mcd	50 mcd	250 mcd	Common Anode	120 °	1.9 V 2.1 V 3.3 V	1 mm	Colorless

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APFA3010 Series

Red, Green, Blue (RGB) 630nm Red, 570nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 2.1V Green, 3.3V Blue 4-SMD, No Lead
