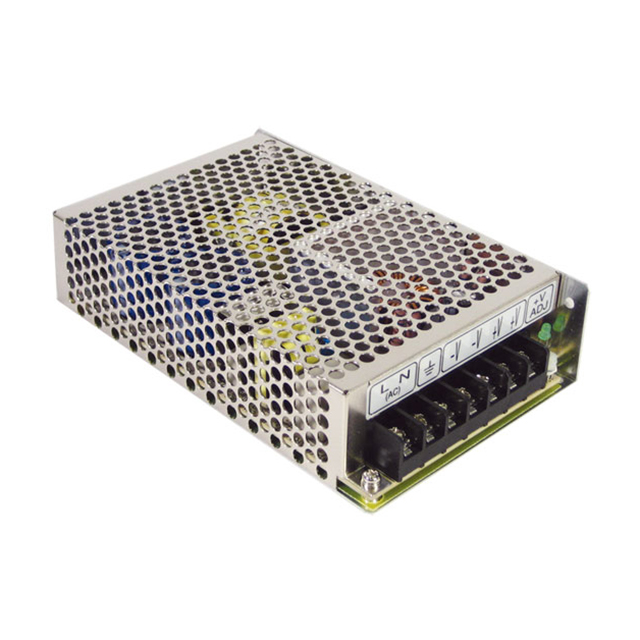

RT-85D

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 24V 12V 90W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 24V 12V 90W

Technical Specifications

Parameters and characteristics for this part

Specification	RT-85D

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	6 A
Current - Output 2	2 A
Efficiency	79 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	90 W
Size / Dimension [x]	6.26 in
Size / Dimension [x]	159 mm
Size / Dimension [y]	97 mm
Size / Dimension [y]	3.82 in
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	88 VAC, 125 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	24 V
Voltage - Output 3	12 V

Part	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Mounting Type	Voltage - Output 3	Current - Output 2	Type	Current - Output 3	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Approval Agency	Features	Power (Watts)	Applications	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1
MEAN WELL USA Inc. RT-85A	12 V	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	76 %	Chassis Mount	-5 V	3.5 A	Enclosed	500 mA	5 V	-25 °C	70 °C	3000 V	CB CE cURus TUV	Adjustable Output Universal Input	85 W	ITE (Commercial)	3	88 VAC 125 VDC	264 VAC 373 VDC	8 A
MEAN WELL USA Inc. RT-85B	12 V	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	76 %	Chassis Mount	-12 V	3.5 A	Enclosed	500 mA	5 V	-25 °C	70 °C	3000 V	CB CE cURus TUV	Adjustable Output Universal Input	88 W	ITE (Commercial)	3	88 VAC 125 VDC	264 VAC 373 VDC	8 A
MEAN WELL USA Inc. RT-85D	24 V	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	79 %	Chassis Mount	12 V	2 A	Enclosed		5 V	-25 °C	70 °C	3000 V	CB CE cURus TUV	Adjustable Output Universal Input	90 W	ITE (Commercial)	3	88 VAC 125 VDC	264 VAC 373 VDC	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 3 Output 5V 24V 12V 88 ~ 264 VAC, 125 ~ 373 VDC Input
