AFBR-HUS500Z

Active

Broadcom Limited

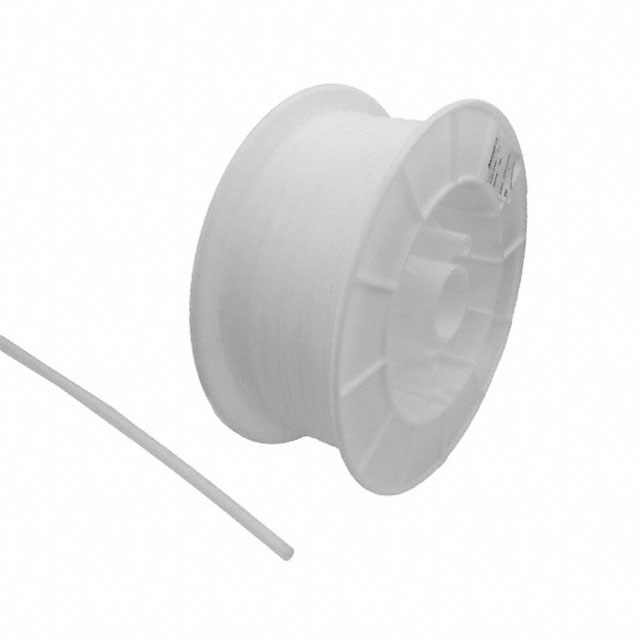

CBL FIBER OPTIC POF 500M

Search across all available documentation for this part.

Active

Broadcom Limited

CBL FIBER OPTIC POF 500M

Technical Specifications

Parameters and characteristics for this part

Specification	AFBR-HUS500Z

Attenuation - Typ	-19 dB
Bend Radius [radius]	35 mm
Jacket (Insulation) Diameter [diameter]	0.087 in
Jacket (Insulation) Diameter [diameter]	2.21 mm
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length [x]	500 m
Length [x]	1640.4 ft
Numerical Aperture	0.48
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Refractive Index - Cladding	1.42
Refractive Index - Core [custom]	1.492
Style	Standard
Type	POF

Part	Length [x]	Length [x]	Refractive Index - Cladding	Refractive Index - Core [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket Color	Numerical Aperture	Style	Bend Radius [radius]	Attenuation - Typ	Type	Operating Temperature [Max]	Operating Temperature [Min]
Broadcom Limited AFBR-HUS500Z	500 m	1640.4 ft	1.42	1.492	0.087 in	2.21 mm	Polyethylene (PE)	Black	0.48	Standard	35 mm	-19 dB	POF	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 578.28

General part information

Fiber Optic Cable Black POF 1640.4' (500.0m)
