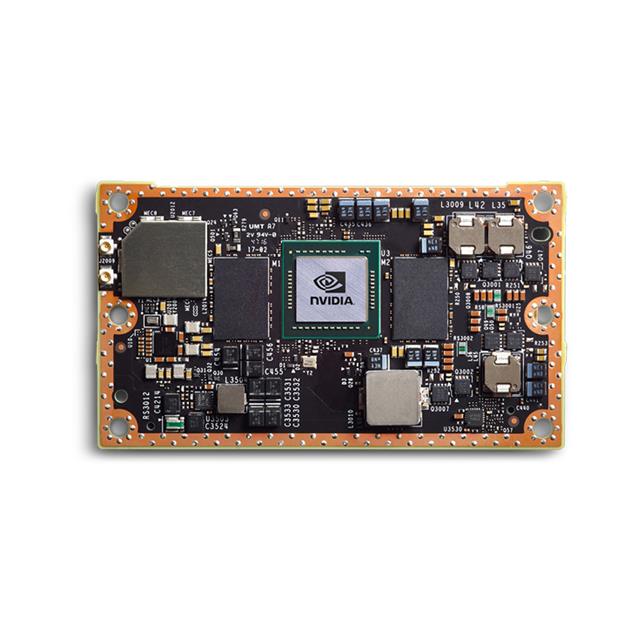

102110402

Active

NVIDIA

SBC 1.866GHZ 2/4 CORE 8GB RAM

Search across all available documentation for this part.

Active

NVIDIA

SBC 1.866GHZ 2/4 CORE 8GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	102110402

Core Processor	ARM Cortex-A57, NVIDIA Denver 2
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	PCIe
Number of Cores	256
Power (Watts)	15 W
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
Size / Dimension [x]	3.43 in
Size / Dimension [x]	87.12 mm
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50.03 mm
Speed	1.866 GHz
Storage Interface	eMMC
Video Outputs	MIPI-CSI-2, DSI, eDP, DP, HDMI
Watchdog Timer	False

Part	Power (Watts)	Storage Interface	Video Outputs	Ethernet	RAM Capacity/Installed	Expansion Site/Bus	USB	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Speed	Cooling Type	Number of Cores	Size / Dimension [y]	Ethernet	Core Processor	Form Factor	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]
NVIDIA 102110408	10 W	microSD	HDMI	GbE	0 GB 4 GB	GPIO I2C SPI UART	USB 2.0 (2) USB 3.0 (1)	80.01 mm	3.937 in	99.99 mm	3.15 in	1.43 GHz	Fan + Heat Sink	4
NVIDIA 102110659	10 W 15 W 20 W	eMMC 5.1	HDMI		16 GB	CAN GPIO I2C I2S SDIO SPI UART	USB 2.0 (3) USB 3.1 (1)		1.771 in	45 mm	2.74 "	1.9 GHz		6	69.6 mm	10 Mbps 100 Mbps 1000 Mbps	NVIDIA Carmel ARMv8.2
NVIDIA 102110409	15 W	eMMC	DP eDP HDMI		8 GB	PCIe	USB 2.0 (3) USB 3.1 (1)	44.95 mm	2.76 in	70.1 mm	1.77 "	1.9 GHz		6		10 Mbps 100 Mbps 1000 Mbps	NVIDIA Carmel ARMv8.2	Small Size
NVIDIA 102110402	15 W	eMMC	DP DSI eDP HDMI MIPI-CSI-2			PCIe		50.03 mm	3.43 in	87.12 mm	1.97 "	1.866 GHz		256		10 Mbps 100 Mbps 1000 Mbps	ARM Cortex-A57 NVIDIA Denver 2		8 GB	0 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 650.00

General part information

Single Board Computer 1.866GHz 256 Core 8GB/0GB RAM NVIDIA Denver 2, ARM Cortex-A57

Technical documentation and resources

No documents available
