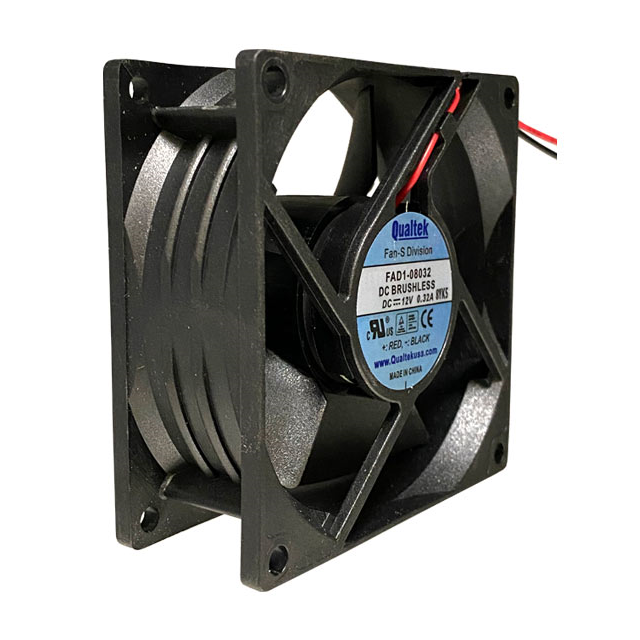

FAD1-08032CBMW12

Active

Qualtek

FAN AXIAL 80.5X32MM 12VDC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 80.5X32MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Voltage - Rated	Static Pressure	Static Pressure	RPM	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Fan Type	Material - Blade	Power (Watts)	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Air Flow	Air Flow	Width [y]	Noise	Current Rating (Amps)
Qualtek FAD1-08032CBJW12	13.2 VDC	10.8 VDC	Plastic	12 VDC	0.316 in H2O	78.7 Pa	4200 RPM	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	Ball	Tubeaxial	Plastic	2.76 W	CE cURus TUV	80.5 mm	80.5 mm	107.95 g	0.238 lb	1.55 m³/min	55.4 CFM	32 mm	44 dB	0.23 A
Qualtek FAD1-08032CBLW12	13.2 VDC	10.8 VDC	Plastic	12 VDC	0.187 in H2O	46.6 Pa	3000 RPM	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	Ball	Tubeaxial	Plastic	1.32 W	CE cURus TUV	80.5 mm	80.5 mm	107.95 g	0.238 lb	1.11 m³/min	39.6 CFM	32 mm	35.5 dB	110 mA
Qualtek FAD1-08032DBMW12	26.4 VDC	21.6 VDC	Plastic	24 VDC	0.241 in H2O	60 Pa	3400 RPM	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	Ball	Tubeaxial	Plastic	2.4 W	CE cURus TUV	80.5 mm	80.5 mm	107.95 g	0.238 lb	1.25 mł/min	44.8 CFM	32 mm	36.7 dB(A)	100 mA
Qualtek FAD1-08032CBMW12	13.2 VDC	10.8 VDC	Plastic	12 VDC	0.241 in H2O	60 Pa	3400 RPM	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	Ball	Tubeaxial	Plastic	1.92 W	CE cURus TUV	80.5 mm	80.5 mm	107.95 g	0.238 lb	1.25 mł/min	44.8 CFM	32 mm	36.7 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80.5mm L x 80.5mm H Ball 44.8 CFM (1.25mł/min) 2 Wire Leads
