0350979702

Active

Molex

CONN QC RCPT 20-26AWG 0.110

Search across all available documentation for this part.

Active

Molex

CONN QC RCPT 20-26AWG 0.110

Technical Specifications

Parameters and characteristics for this part

Part	Tab Width	Tab Width	Tab Length	Tab Length	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Tab Thickness	Tab Thickness	Contact Finish	Mounting Type	Length - Overall [x]	Length - Overall [x]	Terminal Type	Termination	Contact Material
Molex 0350979712	2.79 mm	0.11 "	0.236 in	6 mm	Female	20 AWG	26 AWG	Non-Insulated	0.02 "	0.51 mm	Tin	Free Hanging (In-Line)	0.677 in	17.2 mm	Standard	Crimp	Brass
Molex 0350979802	2.79 mm	0.11 "	0.236 in	6 mm	Female	16 AWG	20 AWG	Non-Insulated	0.02 "	0.51 mm	Tin	Free Hanging (In-Line)	0.677 in	17.2 mm	Standard	Crimp	Brass
Molex 0350979702	2.79 mm	0.11 "	0.236 in	6 mm	Female	20 AWG	26 AWG	Non-Insulated	0.02 "	0.51 mm	Tin	Free Hanging (In-Line)	0.677 in	17.2 mm	Standard	Crimp	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	30000	$ 0.04

General part information

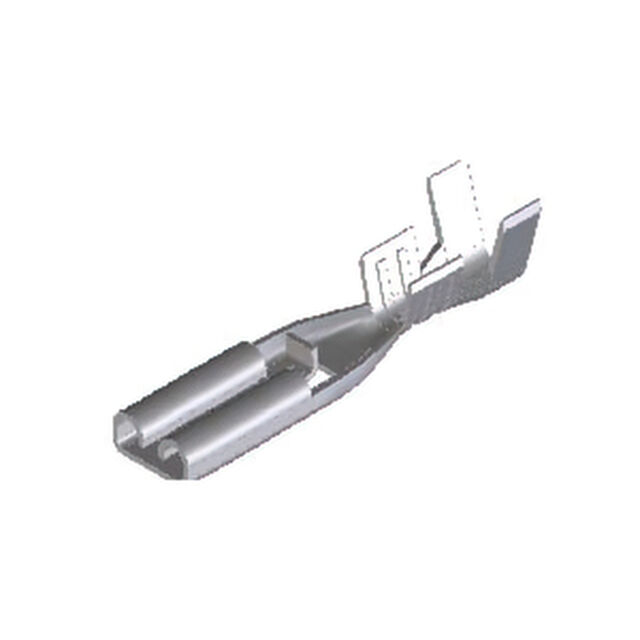

0.110" (2.79mm) Quick Connect Female 20-26 AWG Crimp Connector Non-Insulated
