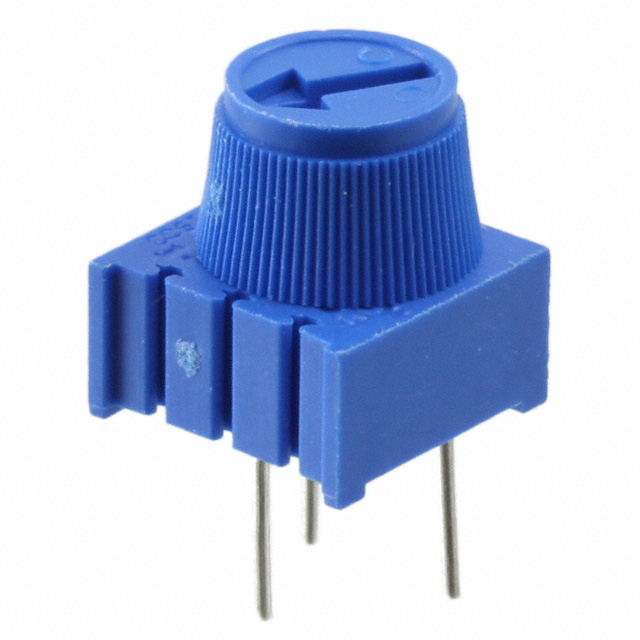

3386F-1-223TLF

Active

Bourns Inc.

TRIMMER 22K OHM 0.5W PC PIN TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3386F-1-223TLF

Active

Bourns Inc.

TRIMMER 22K OHM 0.5W PC PIN TOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3386F-1-223TLF

Adjustment Type	Top Finger Adjustment
Mounting Type	Through Hole
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	22 kOhms
Resistive Material	Cermet
Size / Dimension [x]	0.375 in
Size / Dimension [x]	9.53 mm
Size / Dimension [y]	0.375 in
Size / Dimension [y]	9.53 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3386F Series

Part	Temperature Coefficient	Adjustment Type	Mounting Type	Power (Watts)	Power (Watts)	Number of Turns	Resistive Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Resistance	Termination Style
Bourns Inc. 3386F-1-223TLF	100 ppm/°C	Top Finger Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %	22 kOhms	PC Pins
Bourns Inc. 3386F-1-502TLF	100 ppm/°C	Top Finger Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %	5 kOhms	PC Pins
Bourns Inc. 3386F-1-102LF	100 ppm/°C	Top Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %	1000 Ohms	PC Pins
Bourns Inc. 3386F-1-201T	100 ppm/°C	Top Finger Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %	200 Ohms	PC Pins
Bourns Inc. 3386F-1-100LF	100 ppm/°C	Top Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %	10 Ohms	PC Pins
Bourns Inc. 3386F-1-222	100 ppm/°C	Top Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %	2200 Ohms	PC Pins
Bourns Inc. 3386F-1-202TLF	100 ppm/°C	Top Finger Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %	2 kOhms	PC Pins
Bourns Inc. 3386F-1-204TLF	100 ppm/°C	Top Finger Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %	200000 Ohms	PC Pins
Bourns Inc. 3386F-1-103TLF	100 ppm/°C	Top Finger Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %	10000 Ohms	PC Pins
Bourns Inc. 3386F-1-504T	100 ppm/°C	Top Finger Adjustment	Through Hole	0.5 W	0.5 W	1	Cermet	0.375 in	0.375 in	9.53 mm	9.53 mm	10 %		PC Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 1.23

Description

General part information

3386F Series

22 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Finger Adjustment
