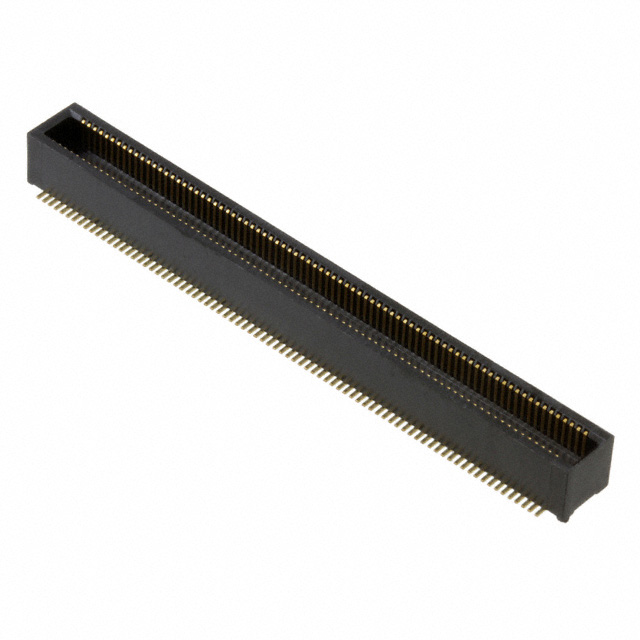

WR-160PB-VF50-N1

Active

JAE Electronics

CONN PLUG 160POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 160POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Mated Stacking Heights	Mounting Type	Height Above Board	Height Above Board	Contact Finish	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Features	Height Above Board [z]	Height Above Board [z]
JAE Electronics WR-160PB-VF-N1	4 mm 4.5 mm 7 mm	Surface Mount	0.118 in	3 mm	Gold	Outer Shroud Contacts Plug	0.5 mm	0.02 in	2	160	4 Áin	0.1 Ám	Board Guide
JAE Electronics WR-160PB-VF-N1-R1500	4 mm 4.5 mm 7 mm	Surface Mount	0.118 in	3 mm	Gold	Outer Shroud Contacts Plug	0.5 mm	0.02 in	2	160	4 Áin	0.1 Ám	Board Guide
JAE Electronics WR-160P-VF-N1	4 mm 4.5 mm 7 mm	Surface Mount	0.118 in	3 mm	Gold	Outer Shroud Contacts Plug	0.5 mm	0.02 in	2	160	4 Áin	0.1 Ám
JAE Electronics WR-160PB-VF50-N1	5 mm 5.5 mm 8 mm	Surface Mount			Gold	Outer Shroud Contacts Plug	0.5 mm	0.02 in	2	160	4 Áin	0.1 Ám	Board Guide	4 mm	0.157 "
JAE Electronics WR-160P-VF-N1-R1500	4 mm 4.5 mm 7 mm	Surface Mount	0.118 in	3 mm	Gold	Outer Shroud Contacts Plug	0.5 mm	0.02 in	2	160	4 Áin	0.1 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

160 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
